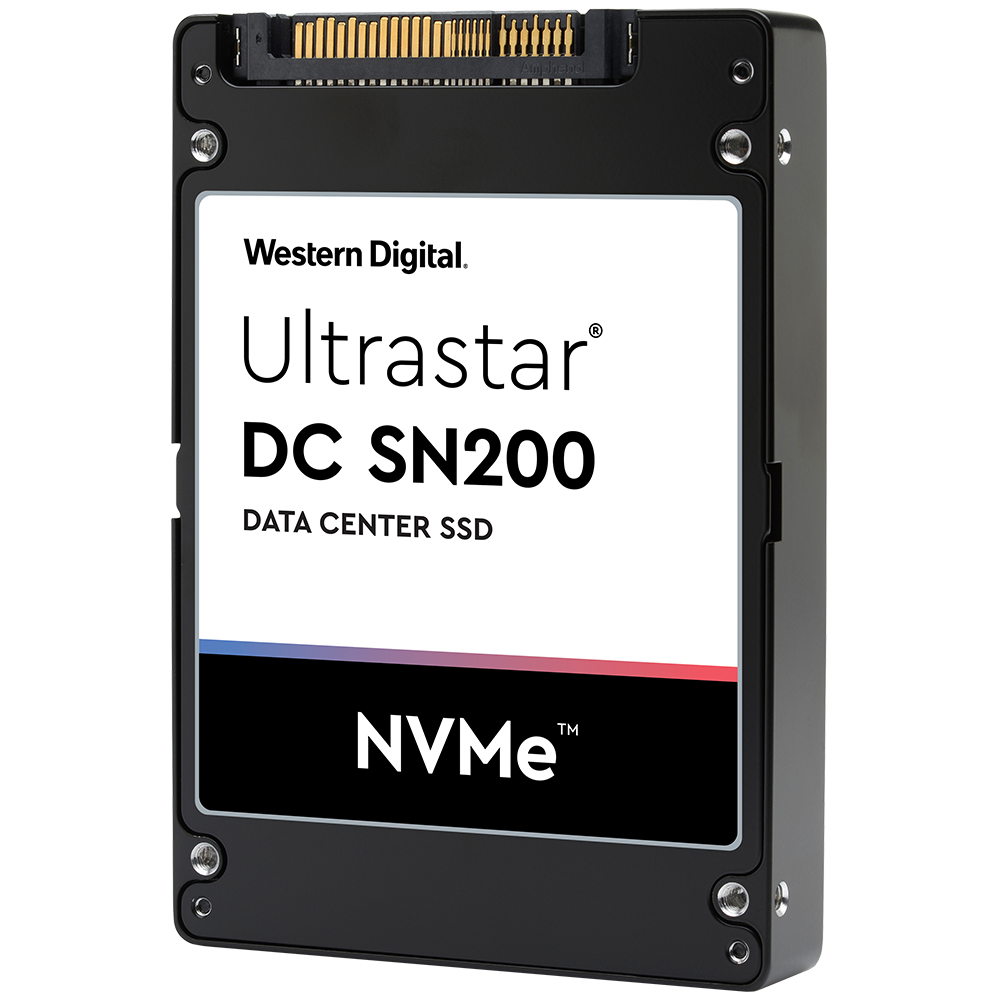

Ultrastar DC SN200
Low Latency and Maximum Throughput for High-Transaction Workloads

Ultrastar DC SN200

Ultrastar DC SN200
Ultrastar DC SN200
USA: FREE Ground ShippingUltrastar DC SN200
#HUSMR7676BHP3Y1
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Accelerate Access to Critical Data for Data-Intensive Workloads and Applications

Ultrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence and access to critical data, these SSDs meet the growing digital demands of your business applications. Our top-end Ultrastar DC SN200 drive delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels and

helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN200 and DC SN200, offer low latency and higher bandwidth for a seamless transition away from SATA SSDs in mixed-use and read-intensive applications. This combination of high throughput and predictable low latency delivers high performance for deeper insights and faster results for today’s data intensive applications.



overview

Features:

Highlights

  • Up to 1.2M random read IOPS
  • Capacities from 800GB to 7.68TB
  • High-performance PCIe Gen 3 & NVMe compliant
  • Enterprise Data Durability Features
  • Options for read-intense and mixed-use workloads
  • Enterprise-class 2M hour MTBF4 reliability rating

Applications and Workload

  • Mission-Critical Database Applications
  • Highest Performance Tier Storage
  • Cloud and Hyperscale Computing
  • Analytical Processing (OLAP)
  • Boot and Edge
  • Hyper-Converged Infrastructure (HCI)
  • Virtualization

Specifications:

General HH-HL Add-in Card U.2 2.5-Inch Drive
Interface PCIe 3.0 x8 NVMe™ 1.2 PCIe 3.0 x4 or 2x2 NVMe™ 1.2
Capacity 3 DW/D: 6.4TB / 3.2TB / 1.6TB
1 DW/D: 7.68TB / 3.84TB / 1.92TB
3 DW/D: 6.4TB / 3.2TB / 1.6TB / 800GB
1 DW/D: 7.68TB / 3.84TB / 1.92TB / 960GB
Maximum Terabytes Written (TBW) 3 DW/D: 35,040 / 17,520 / 8,760
1 DW/D: 14,016 / 7,008 / 3,504
3 DW/D: 35,040 / 17,520 / 8,760 / 4,380
1 DW/D: 14,016 / 7,008 / 3,504 / 1,752
Performance
Sequential Read (max MiB/s, 128KiB) 6,170 3,350
Sequential Write (max MiB/s, 128KiB) 2,200 2,100
Random Read (max IOPS, 4KiB) 1,200,000 835,000
Random Write (max IOPS, 4KiB) 3 DW/D: 200,000
1 DW/D: 75,000
3 DW/D: 200,000
1 DW/D: 75,000
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB) 3 DW/D: 580,000
1 DW/D: 240,000
3 DW/D: 580,000
1 DW/D: 240,000
Write Latency 512B 20 20

Documentation:

Download the Ultrastar DC SN200 Datasheet (PDF).
