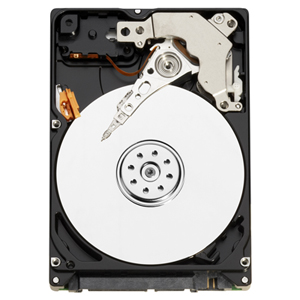

WD AV Digital Video 2.5-inch Mobile Hard Drives
24x7 Reliability for Video Streaming


WD AV Digital Video 2.5-inch Hard Drive

Western Digital AV Hard Drives
WD AV Hard Drives - SATA 3 Gb/s
WD AV Hard Drive, 1 TB
Internal HD - 1 TB - 2.5 Inch - SATA 3 Gb/s - 5400 RPM - 16MB Cache - 120 video hours
#WD10JUCT
Get a Quote!
WD AV Hard Drive, 500 GB
Internal HD - 500 GB - 2.5 Inch - SATA 3 Gb/s - 5400 RPM - 16MB Cache - 60 video hours
#WD5000LUCT
Get a Quote!
WD AV Hard Drive, 320 GB
Internal HD - 320 GB - 2.5 Inch - SATA 3 Gb/s - 5400 RPM - 16MB Cache - 38 video hours
#WD3200BUCT
Get a Quote!
WD AV Hard Drive, 250 GB
Internal HD - 250 GB - 2.5 Inch - SATA 3 Gb/s - 5400 RPM - 16MB Cache - 30 video hours
#WD2500BUCT
Get a Quote!



Overview:

WD AV 2.5-inch (formerly WD AV-25) hard drives are optimized with SilkStream™ technology to capture data from up to 12 simultaneous HD video streams. With 24x7 operation, low temperature, and best-in-class reliability, WD AV 2.5-inch hard drives are ideal for DVR/PVR, IPTV and digital video surveillance applications requiring smaller form factor hard drives. 3-year limited warranty.

24x7 reliability

24x7 reliability
These drives are designed to last in high temperature always-on streaming digital audio/video environments such as PVR, DVR and IPTV systems.

Low-power, compact storage

Low-power, compact storage.
Cool, quiet 2.5-inch AV storage is the perfect solution for a variety of multimedia applications and fanless environments where the drive operates below 65° C base casting temperature.


SilkStream

SilkStream
Optimized for smooth, continuous digital video playback of up to 16 simultaneous HD streams.* SilkStream is compatible with the ATA streaming command set so CE customers can use standard streaming management and error recovery options.


Low Capacity Surveillance
WD AV drives offer 500 GB and lower capacities suitable for low profile entry level surveillance systems requiring reliability in always on environments.

Preemptive Wear Leveling (PWL).
The drive arm frequently sweeps across the disk to reduce uneven wear on the drive surface common to audio video streaming applications.

IntelliSeek
Calculates optimum seek speeds to lower power consumption, noise and vibration.

Quiet
Noise levels have been minimized to less than one sone* - virtually below the threshold of human hearing.

Reduced power consumption
WD AV drives consume less power by up to 40 percent compared to 7200 RPM hard drives. Lower power means less heat and greater reliability

Advanced Format (AF)Advanced Format (AF)
Leading edge technology delivers improved video quality and AV performance through enhanced error correction capability. (EURS/EURX/AUDX/xxCT models only)

Recommended use
Set-top boxes (PVR, DVR, NVR and IPTV), media servers and media centers.

Applications

Set-top boxes (PVR, DVR and IPTV), and digital video surveillance.

The WD advantage

WD puts our products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it.

* A sone is a subjective unit of loudness as perceived by a person with normal hearing.

Specifications:

Examples of the number of photos, songs, videos and any other files that can be stored on a hard drive are provided for illustrative purposes only. Your results will vary based on file size and format, settings, features, software and other factors.

Photo: Figures represent the average number of photos taken with a 6 megapixel camera in high-resolution JPEG mode with an average file size of 3.5 MB per photo. The actual number of images will vary by camera model and compression setting.

Hours: The DV format, regardless of its mode (miniDV, DVCAM, DVC-Pro) has a data rate of approximately 25mb/s (mega-bits per second). In storage terms, this translates to approximately 3.5MB/s (Megabytes per second) or 13GB/hr (Gigabytes per hour)

Song: Music capacity is based on 4 minutes per song. MP3 capacity is based on 128 Kbps bit rate and 11:1 audio compression ratio. Uncompressed CD quality is based on 1:1 audio compression ratio.

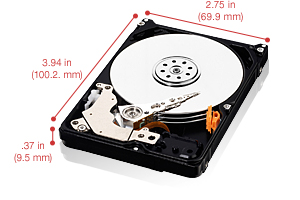

WD AV-25 Dimensions

What It Holds

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Drive Size 1 TB 500 GB 500 GB 320 GB 250 GB
Specifications
Model Number1 WD10JUCT WD5000LUCT WD5000BUCT WD3200BUCT WD2500BUCT
Interface SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s SATA 3 Gb/s
Formatted Capacity2 1,000,204 MB 500,107 MB 500,107 MB 320,072 MB 250,059 MB
User sectors per drive 1,953,525,168 976,773,168 976,773,168 625,142,448 488,397,168
Form factor 2.5-inch 2.5-inch 2.5-inch 2.5-inch 2.5-inch
Advanced Format (AF) Yes Yes Yes Yes Yes
RoHS compliant3 Yes Yes Yes Yes Yes
Performance
Data transfer rate (max)
Buffer to host
host to/from drive (sustained)

3 Gb/s
144 MB/s

3 Gb/s
147 MB/s

3 Gb/s
136 MB/s

3 Gb/s
116 MB/s

3 Gb/s
116 MB/s
Cache (MB) 16 16 16 16 16
Rotational Speed (RPM) 5400 5400 5400 5400 5400
Reliability/Data Integrity
Load/unload cycles4 600,000
Non-recoverable read errors per bits read <1 in 1014
Limited warranty (years)5 3
Power Management
Average power requirements (W) Read/Write: 1.4
Idle: 0.6
Standby: 0.2
Sleep: 0.2
Read/Write: 1.4
Idle: 0.8
Standby: 0.1
Sleep: 0.1
Read/Write: 1.7
Idle: 0.7
Standby: 0.2
Sleep: 0.2
Read/Write: 1.7
Idle: 0.6
Standby: 0.2
Sleep: 0.2
Read/Write: 1.7
Idle: 0.6
Standby: 0.2
Sleep: 0.2
Environmental Specifications6
Operating Temperature 0 to 60° C
Non-operating Temperature -40 to 65° C
Shock (Gs)
Operating (2 ms, read/write) 400 400 350 350 350
Non-operating (2 ms) 1000 1000 1000 1000 1000
Average acoustics (dBA)7
Idle mode 24 17 24 22 22
Average seek mode 25 22 25 25 25
Physical Dimensions
Height (in./mm, max) 0.374/9.50
Length (in./mm, max) 3.94/100.20
Width (in./mm, ± .01 in.) 2.75/69.85
Weight (lb./kg, ± 10%) 0.25/0.12 0.20/0.92 0.22/0.10 0.22/0.10 0.22/0.10

1 Not all products may be available in all regions of the world.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 3 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATAIO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 WD hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.
4 Controlled unload at ambient condition
5 The term of the limited warranty may vary by region. Visit http://support.wdc.com/warranty for details.
6 No non-recoverable errors during operating tests or after non-operating tests.
7 Sound power level.

Advanced Format Hard Drive Download UtilityAdvanced Format Hard Drive Download Utility:


About Western Digital Advanced Format Hard Drives

WD Advanced Format drives are specifically optimized for Mac and the latest Windows operating systems such as Windows Vista and Windows 7 with a clean install. Advanced Format Technology is being adopted by WD and other drive manufacturers to increase media format efficiency, thus enabling larger drive capacities.

Using your WD Advanced Format Hard Drive with a Windows Operating System may require you to run the WD Align Windows software utility after you install your operating system or partition and format the drive as a secondary drive. The WD Align software aligns existing partitions on the Advanced Format drive to ensure it provides full performance for certain configurations. (Please see table for configuration details)

If your operating system is either Windows 7 or Vista, WD recommends using the latest Intel driver version 9.6 or later for maximum performance in all situations. Please visit Intel for the latest driver downloads.

OS used to create patition Clean Install Cloning utilitiy
1 Partition or > 1 Partition
USB*
1 Partition
USB*
> 1 Partition
Windows XP Run WD Allgn Run WD Allgn Run WD Allgn Run WD Allgn
Windows Vista N/A Run WD Allgn N/A N/A
Windows 7 N/A Run WD Allgn N/A N/A
Mac OS N/A N/A N/A N/A

What does Advanced Formatting mean to me?

Advanced formatting optimizes hard drives to take advantage of the capabilities of newer operating systems. This capability enables hard disk drive manufacturers the ability to design larger capacity hard drives, now and into the future.

What are the benefits of Advanced Formatting?

Advanced Formatting enables hard drive companies to read and write more data into the same available space on the hard drive.

Can I install an Advanced Format hard drive in my system?

New drives from WD are optimized for operation with Windows 7, Windows Vista and Mac OS X Tiger, Leopard, Snow Leopard. If you are attempting a clean install of an Advanced Format hard drive into a system running one of the Operating Systems listed above the installation process follows standard procedure. For older operating systems such as Windows XP, and for users using cloning software, users must run the WD Align utility to achieve the full performance of the drive. (See table for configuration details)

Early 3.5-inch WD drives with Advanced Format supported jumper pins 7 – 8. Placing a jumper on these pins adjusted the drive's internal alignment for single partition XP installations. Support for this jumper setting is no longer needed on newer drives. For optimal performance on all XP installations WD recommends running the WD Align utility.

If you have a drive that supports jumper pins 7 – 8 and have a jumper in place on those pins, the following is additional information to assist you if you are re-installing an Operating System or re-partitioning the drive:

  • IMPORTANT: You must backup your drive before making any changes, including removal of the jumper.
  • Re-partition the drive: Turn off power to the drive and remove the jumper from pins 7 – 8. Power-on and re-partition the drive (NOTE: All previous data on the drive will be lost).
  • Preserve Current Partition: If you are installing an Operating System over the existing partition, keep the jumper on pins 7 – 8. The drive is already aligned to the existing partition so you do not need to remove the jumper.
  • If you change the setting of jumper 7 – 8, you will lose all previous data and the drive must be re-partitioned.

For a clean install of Windows XP using multiple partitions, DO NOT install the jumper; simply run the WD Align utility.

Can I install a WD Advanced Format Drive under non-Windows Operating Systems, such as MacOS and Linux?

WD Advanced Format Drives can be used under non-Windows Operating Systems.

Do I need a special driver to install a WD Advanced Format Drive on an Intel chipset?

If your operating system is either Windows 7 or Vista, we recommend the following for maximum performance in all situations:

  • For Intel chipset, use the latest Intel driver version 9.6 or later. Please visit Intel for the latest driver downloads at http://www.intel.com/support/chipsets/imsm/sb/CS-031502.htm
  • For AMD chipset, no driver update is required.
  • For Nvidia chipset, please visit http://support.microsoft.com/kb/982018 for additional information.

What is WD Align utility software?

The WD Align utility enables older operating systems to operate at full performance on Advanced Format hard drives.

How long will running the WD Align utility take?

It will vary based on your operating system and how much data is on the disk, but the WD Align utility should take about 20 minutes to complete on freshly installed drive images with no data files. We recommend disabling Power Management prior to starting the partitioning alignment process.

Does the WD Align utility have to be run again if a drive is reformatted?

No, users will only need to run WD Align one time after initially installing Windows XP. Once Windows XP has been aligned, it will stay aligned even if the drive is reformatted or many files are added or removed.

What models utilize Advanced Format technology?

Some models of the WD Caviar Green and WD Scorpio Blue product families are built using Advanced Format technology. Over time more models and capacities will be added. WD drives with Advanced Format technology include special installation information on the drive label so be sure to read the label on your drive before installing it.

Does WD Align work with Western Digital USB and Firewire drives, such as My Book and My Passport drives?

If you do not change the partitions on a Western Digital USB or Firewire drive, the drive is already optimally aligned. However, all Western Digital USB and Firewire drives are specifically designed to work with WD Align. If you repartition a Western Digital USB or Firewire drive, WD Align should be run to optimally align the partition or partitions.

Can I install my Advanced Format Drive into a USB enclosure?

Yes, you may install your Advanced Format Drive into a USB enclosure.

Drive Views:

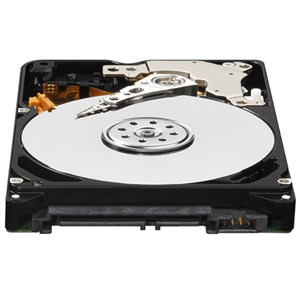

Bottom View
Bottom View

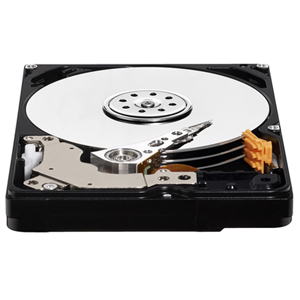

Top View
Top View

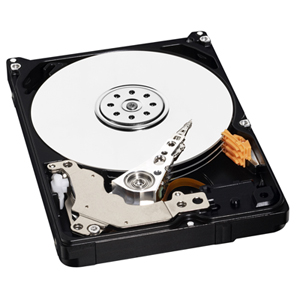

Bottom Angle View
Bottom Angle View

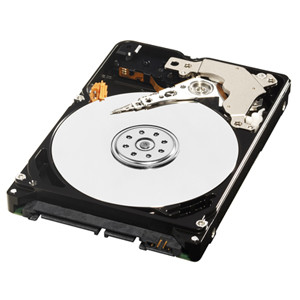

Top Angle View
Top Angle View

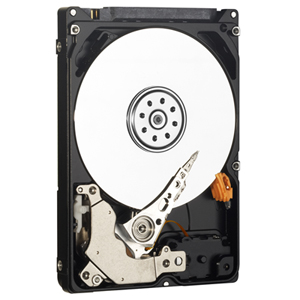

Right Angle View
Right Angle View

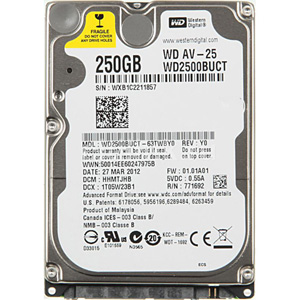

Cover View
