WD Blue Desktop 3.5-inch Hard Drives
Solid Peformance and Reliability for Everyday Computing

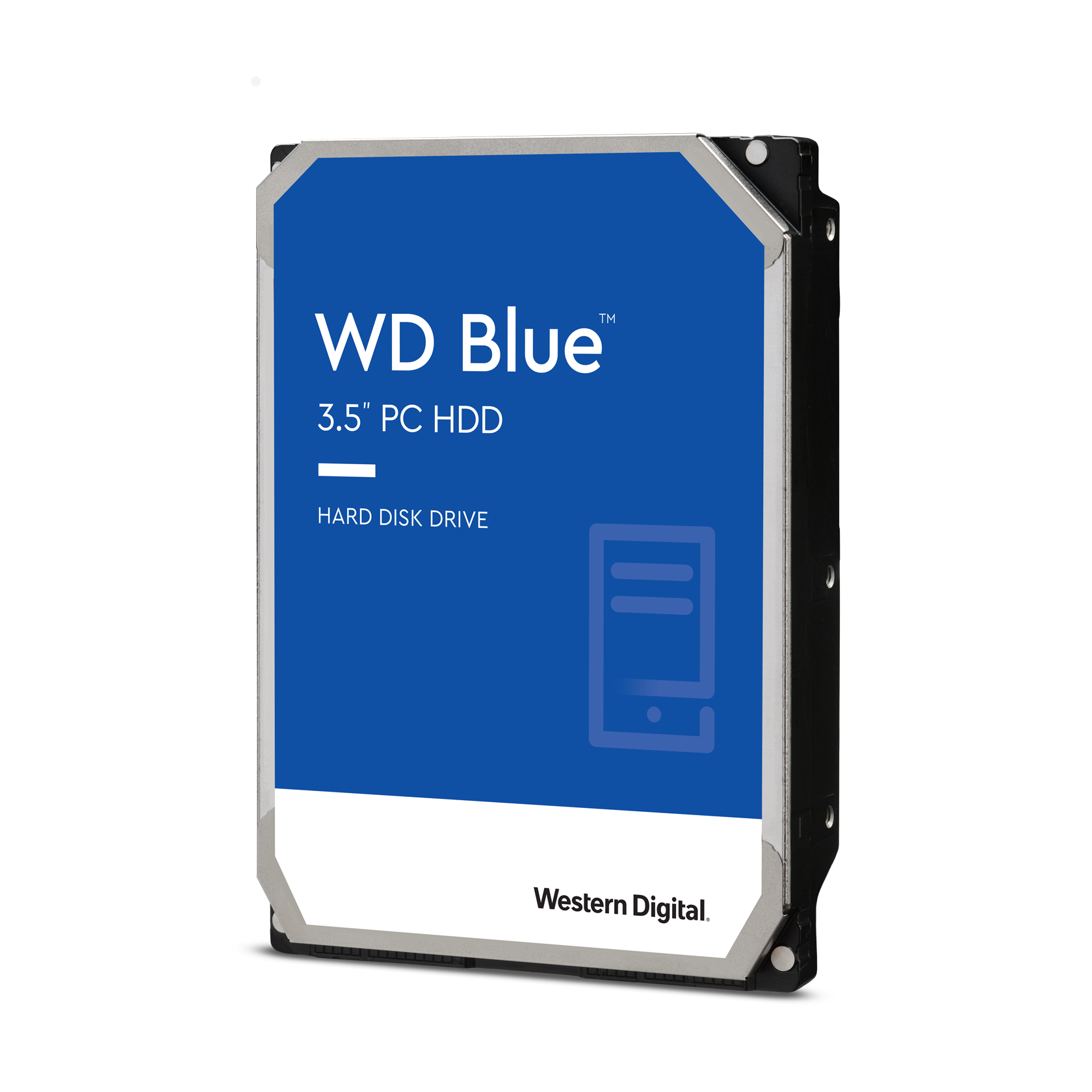

WD Blue Desktop 3.5-inch Hard Drive

Western Digital Desktop Hard Drives
WD Blue Desktop Hard Drives
WD Blue Desktop Hard Drive, 6 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 5400 RPM - 64MB Cache
#WD60EZRZ
Get a Quote!
WD Blue Desktop Hard Drive, 4 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 5400 RPM - 64MB Cache
#WD40EZRZ
Get a Quote!
WD Blue Desktop Hard Drive, 3 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 5400 RPM - 64MB Cache
#WD30EZRZ
Get a Quote!
WD Blue Desktop Hard Drive, 2 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 5400 RPM - 64MB Cache
#WD20EZRZ
Get a Quote!
WD Blue Desktop Hard Drive, 1 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 7200 RPM - 64MB Cache
#WD10EZEX
Get a Quote!
WD Blue Desktop Hard Drive, 1 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 5400 RPM - 64MB Cache
#WD10EZRZ
Get a Quote!
WD Blue Desktop Hard Drive, 500 GB
Internal HD - 500 GB - 3.5 Inch - SATA 6 Gb/s - 5400 RPM - 64MB Cache
#WD5000AZRZ
Get a Quote!
WD Blue Desktop Hard Drive, 500 GB
Internal HD - 500 GB - 3.5 Inch - SATA 6 Gb/s - 7200 RPM - 16MB Cache
#WD5000AAKX
Get a Quote!
WD Blue Desktop Hard Drive, 320 GB
Internal HD - 320 GB - 3.5 Inch - SATA 6 Gb/s - 7200 RPM - 16MB Cache
#WD3200AAKX
Get a Quote!
WD Blue Desktop Hard Drive, 250 GB
Internal HD - 250 GB - 3.5 Inch - SATA 6 Gb/s - 7200 RPM - 16MB Cache
#WD2500AAKX
Get a Quote!



Overview:

WD Blue hard drives deliver solid performance and reliability for desktops PCs, external enclosures and for certain industrial applications. WD expands their award-winning desktop and mobile storage lineup with WD Blue PC hard drives. Extensively tested and built to WD's high standards, WD Blue offers a wide variety of capacities - ranging from 250 GB to the massive 6 TB – in both desktop and mobile models. Drive WD Blue with confidence – our colors never fade.

Improve PC Performance

Improve PC Performance
Pair a larger capacity drive with an SSD to give your desktop a performance and storage boost. The SSD maximizes speed of data access, while the WD Blue drive stores up to 6 TB of movies, games, files, applications and more.

Upgrade and Backup with Ease

Upgrade and Backup with Ease
WD hard drives come with free access to WD Acronis True Image. Our downloadable software quickly copies all your existing data to your new drive – without reinstalling your operating system. Backup and restore functions make it easy to save and retrieve your personal data.

Plan for the Future

Plan for the Future
With better technology comes bigger storage needs. Cameras that record ultra-high definition video at 4K resolution at 30 frames per second require a ton of storage. Handling all that media is a snap with our 6 TB drive, capable of storing up to 281.25 hours of 4K video.


WD BlueSATA or PATA, the choice is yours

While SATA has become the industry standard interface, WD continues to manufacture desktop drives with a PATA interface for unique or legacy systems.

PATA - Enhanced integrated drive electronics (EIDE), also called Parallel ATA (PATA), hard drives have been the standard in the computer industry for more than 10 years.

SATA - Serial ATA (SATA) hard drives are quickly becoming the new standard. Motherboard manufacturers now include SATA inputs on their boards. Because of their considerably narrower cables, SATA hard drives provide increased airflow and less clutter and in the computer system compared to PATA drives.

The performance difference - PATA drives support data transfer rates up to 100MB/sec, and all WD Caviar Blue SATA drive support 6 Gb/s transfer rates.

Storage Capacity Up to 6 TB
Boost your PC storage with WD Blue drives, the brand designed specifically for desktop and all-inone PCs. The WD Blue family now delivers data storage capacities up to 6 TB.

Trust in WD
If you know WD, you know our reliability is legendary. Every WD Blue drive is designed, tested and built to last, and ships with a 2-year limited warranty.

NoTouch Ramp Load Technology
Safely positions the recording head off the disk surface to protect your data.

Data LifeGuard
Advanced algorithms monitor your drive continuously so it stays in optimum health.

IntelliSeek
Calculates optimum seek speeds to lower power consumption, noise and vibration.

* Desktop drives are not recommended for use in RAID environments, please consider using WD Red hard drives for desktop RAID environments or WD datacenter hard drives for rackmount or large RAID configurations.

Features:


The original
WD Blue drives are designed and manufactured with the proven technology found in WD's original award-winning desktop hard drives.

WD quality
Built to the highest standards of quality and reliability, these drives offer the features and capacity ideal for your everyday computing needs.

More options
These drives are available in a broad range of capacities, cache sizes and interfaces so you can be sure there's a drive that's the perfect fit for your system, in more ways than one.

SATA or PATA interface
While SATA has become the industry standard interface, WD continues to manufacture desktop drives with a PATA interface for unique or legacy systems.

Tested for compatibility.
We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab to give our customers confidence that our drives will work in their systems.

Upgrading your drive is easy.
WD Acronis TrueImage, available as a free download on the WD Support site, enables you to copy all your data to a new drive so you don't have to reinstall your operating system to get all the benefits of a new drive.

NoTouch ramp load technologyNoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit. IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise and vibration.

ShockGuard.
Instantaneously protects the hard drive against damage from bumps and vibrations while it is running. This technology enables WD Caviar drives to achieve industry-leading shock specifications.

Advanced Format (AF)Advanced Format (AF).
Technology being adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities.

Easy upgrade
Acronis True Image , available as a download on the WD Support website, enables you to copy all your data to a new drive so you don't have to reinstall your operating system to get all the benefits of a new drive.

Applications

WD Blue storage is tested and recommended for use in desktop and All-in-One PCs, notebooks, and external enclosures where capacity is not needed. Desktop drives are not recommended for use in RAID environments. Please consider using WD Red hard drives for home and small office 1 - 8 bay NAS systems and WD Red Pro hard drives for rackmount and NAS systems with up to 16 bays.*

The WD Advantage

WD puts our products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.

*WD hard drives are designed and tested for use in specific applications and environments. This ensures that your hard drive is compatible with and functions properly in your application. Our hard drives are warranted against defects in materials and workmanship in the system for which they were designed. Use in systems other than for what the hard drive was designed could result in compatibility problems that affect proper function, unrelated to material and/or workmanship defects. For best results, be sure to select the appropriate product for your application by consulting our product spec sheets on our website at www.wd.com or by calling our customer support line where we would be happy to help you through the selection process.

Green to Blue Details:

Green to Blue Details

WD has expanded its line of WD Blue hard drives with new model numbers and solutions.

Now available in up to 6 TB capacities and low power models, WD is making it easier for customers to choose the right drive for their PC.

Green to Blue Details
Green to Blue Details

Specifications:

Examples of the number of photos, songs, videos and any other files that can be stored on a hard drive are provided for illustrative purposes only. Your results will vary based on file size and format, settings, features, software and other factors.

Photo: Figures represent the average number of photos taken with a 6 megapixel camera in high-resolution JPEG mode with an average file size of 3.5 MB per photo. The actual number of images will vary by camera model and compression setting.

Hours: The DV format, regardless of its mode (miniDV, DVCAM, DVC-Pro) has a data rate of approximately 25mb/s (mega-bits per second). In storage terms, this translates to approximately 3.5MB/s (Megabytes per second) or 13GB/hr (Gigabytes per hour)

Song: Music capacity is based on 4 minutes per song. MP3 capacity is based on 128 Kbps bit rate and 11:1 audio compression ratio. Uncompressed CD quality is based on 1:1 audio compression ratio.

WD Blue Dimensions

What It Holds

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Drive Size 6 TB 5 TB 4 TB 3 TB 2 TB 1 TB 1 TB
Specifications
Model Number1 WD60EZRZ WD50EZRZ WD40EZRZ WD30EZRZ WD20EZRZ WD10EZRZ WD10EZEX
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Formatted Capacity2 6 TB 5 TB 4 TB 3 TB 2 TB 1 TB 1 TB
Advanced Format (AF) Yes Yes Yes Yes Yes Yes Yes
Form factor 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch
RoHS Compliant3 Yes Yes Yes Yes Yes Yes Yes
Performance
Data transfer rate (max)
Buffer to host
host to/from drive (sustained)

6 Gb/s
175 MB/s

6 Gb/s
170 MB/s

6 Gb/s
150 MB/s

6 Gb/s
147 MB/s

6 Gb/s
147 MB/s

6 Gb/s
150 MB/s

6 Gb/s
150 MB/s
Cache (MB) 64 64 64 64 64 64 64
Rotational Speed (RPM) 5400 RPM Class 5400 RPM Class 5400 RPM Class 5400 RPM Class 5400 RPM Class 5400 RPM Class 7200 RPM Class
Reliability/Data Integrity
Load/unload cycles4 300,000
Non-recoverable read errors per bits read <1 in 1014
Limited warranty (years)5 2
Power Management
12VDC peak (A, ±10%) 1.75 1.75 1.75 1.73 1.73 1.2 2.5
Average power requirements (W) Read/Write: 5.3
Idle: 3.4
Standby: 0.4
Sleep: 0.4
Read/Write: 5.3
Idle: 3.4
Standby: 0.4
Sleep: 0.4
Read/Write: 5.3
Idle: 3.4
Standby: 0.4
Sleep: 0.4
Read/Write: 4.1
Idle: 3.0
Standby: 0.4
Sleep: 0.4
Read/Write: 4.1
Idle: 3.0
Standby: 0.4
Sleep: 0.4
Read/Write: 3.3
Idle: 2.5
Standby: 0.4
Sleep: 0.4
Read/Write: 6.8
Idle: 6.1
Standby: 1.2
Sleep: 1.2
Environmental Specifications6
Operating Temperature 0 to 60° C
Non-operating Temperature -40 to 70° C
Shock (Gs)
Operating (2 ms, read/write) 30 30 30 30 30 30 30
Operating (2 ms, read) 65 65 65 65 65 65 65
Non-operating (1 ms) 250 250 250 250 250 350 350
Average acoustics (dBA)7
Idle mode 25 25 25 23 23 21 29
Performance seek mode 28 28 28 27 27 24 30
Physical Dimensions
Height (in./mm, max) 1.028/25.4
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 1.65/0.75 1.65/0.75 1.50/0.68 1.40/0.64 1.32/0.60 0.99/0.45 0.99/0.45
Drive Size 750 GB 500 GB 500 GB 500 GB 320 GB 250 GB
Specifications
Model Number1 WD7500AZEX WD5000AZRZ WD5000AAKX WD5000AZLX WD3200AAKX WD2500AAKX
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Formatted Capacity2 750,156 MB 500 GB 500,107 MB 500,107 MB 320,072 MB 250,059 MB
Advanced Format (AF) Yes Yes Yes Yes Yes Yes
Form factor 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch
RoHS Compliant3 Yes Yes Yes Yes Yes Yes
Performance
Data transfer rate (max)
Buffer to host
host to/from drive (sustained)

6 Gb/s
150 MB/s

6 Gb/s
150 MB/s

6 Gb/s
126 MB/s

6 Gb/s
150 MB/s

6 Gb/s
126 MB/s

6 Gb/s
150 MB/s

Cache (MB) 64 64 16 32 16 16
Rotational Speed (RPM) 7200 RPM Class 5400 RPM Class 7200 RPM Class 7200 RPM Class 7200 RPM Class 7200 RPM Class
Reliability/Data Integrity
Load/unload cycles4 300,000
Non-recoverable read errors per bits read <1 in 1014
Limited warranty (years)5 2
Power Management
12VDC peak (A, ±10%) 2.5 1.2 1.77 2 1.77 1.77
Average power requirements (W) Read/Write: 6.8
Idle: 6.1
Standby: 1.2
Sleep: 1.2
Read/Write: 3.3
Idle: 2.5
Standby: 0.4
Sleep: 0.4
Read/Write: 6.0
Idle: 5.6
Standby: 0.9
Sleep: 0.9
Read/Write: 6.8
Idle: 6.1
Standby: 1.2
Sleep: 1.2
Read/Write: 6.0
Idle: 5.6
Standby: 0.9
Sleep: 0.9
Read/Write: 5.3
Idle: 4.9
Standby: 0.7
Sleep: 0.7

Environmental Specifications6
Operating Temperature 0 to 60° C
Non-operating Temperature -40 to 70° C
Shock (Gs)
Operating (2 ms, read/write) 30 30 30 30 30 30
Operating (2 ms, read) 65 65 65 65 65 65
Non-operating (1 ms) 350 350 350 350 350 350
Average acoustics (dBA)7
Idle mode 29 21 29 29 29 29
Performance seek mode 30 22 30 30 30 30
Physical Dimensions
Height (in./mm, max) 1.028/25.4
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 0.99/0.45 0.99/0.45 0.95/0.43 0.99/0.45 0.95/0.43 0.99/0.45

1 Not all products may be available in all regions of the world.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 3 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 WD hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.
4 Controlled unload at ambient condition.
5 The term of the limited warranty may vary by region. Visit http://support.wdc.com/warranty for details.
6 No non-recoverable errors during operating tests or after non-operating tests.
7 Sound power level.

Advanced Format TechnologyAdvanced Format Hard Drive Download Utility:


About Western Digital Advanced Format Hard Drives

WD Advanced Format drives are specifically optimized for Mac and the latest Windows operating systems such as Windows Vista and Windows 7 with a clean install. Advanced Format Technology is being adopted by WD and other drive manufacturers to increase media format efficiency, thus enabling larger drive capacities.

Using your WD Advanced Format Hard Drive with a Windows Operating System may require you to run the WD Align Windows software utility after you install your operating system or partition and format the drive as a secondary drive. The WD Align software aligns existing partitions on the Advanced Format drive to ensure it provides full performance for certain configurations. (Please see table for configuration details)

If your operating system is either Windows 7 or Vista, WD recommends using the latest Intel driver version 9.6 or later for maximum performance in all situations. Please visit Intel for the latest driver downloads.

OS used to create patition Clean Install Cloning utilitiy
1 Partition or > 1 Partition
USB*
1 Partition
USB*
> 1 Partition
Windows XP Run WD Allgn Run WD Allgn Run WD Allgn Run WD Allgn
Windows Vista N/A Run WD Allgn N/A N/A
Windows 7 N/A Run WD Allgn N/A N/A
Mac OS N/A N/A N/A N/A

What does Advanced Formatting mean to me?

Advanced formatting optimizes hard drives to take advantage of the capabilities of newer operating systems. This capability enables hard disk drive manufacturers the ability to design larger capacity hard drives, now and into the future.

What are the benefits of Advanced Formatting?

Advanced Formatting enables hard drive companies to read and write more data into the same available space on the hard drive.

Can I install an Advanced Format hard drive in my system?

New drives from WD are optimized for operation with Windows 7, Windows Vista and Mac OS X Tiger, Leopard, Snow Leopard. If you are attempting a clean install of an Advanced Format hard drive into a system running one of the Operating Systems listed above the installation process follows standard procedure. For older operating systems such as Windows XP, and for users using cloning software, users must run the WD Align utility to achieve the full performance of the drive. (See table for configuration details)

Early 3.5-inch WD drives with Advanced Format supported jumper pins 7 – 8. Placing a jumper on these pins adjusted the drive's internal alignment for single partition XP installations. Support for this jumper setting is no longer needed on newer drives. For optimal performance on all XP installations WD recommends running the WD Align utility.

If you have a drive that supports jumper pins 7 – 8 and have a jumper in place on those pins, the following is additional information to assist you if you are re-installing an Operating System or re-partitioning the drive:

  • IMPORTANT: You must backup your drive before making any changes, including removal of the jumper.
  • Re-partition the drive: Turn off power to the drive and remove the jumper from pins 7 – 8. Power-on and re-partition the drive (NOTE: All previous data on the drive will be lost).
  • Preserve Current Partition: If you are installing an Operating System over the existing partition, keep the jumper on pins 7 – 8. The drive is already aligned to the existing partition so you do not need to remove the jumper.
  • If you change the setting of jumper 7 – 8, you will lose all previous data and the drive must be re-partitioned.

For a clean install of Windows XP using multiple partitions, DO NOT install the jumper; simply run the WD Align utility.

Can I install a WD Advanced Format Drive under non-Windows Operating Systems, such as MacOS and Linux?

WD Advanced Format Drives can be used under non-Windows Operating Systems.

Do I need a special driver to install a WD Advanced Format Drive on an Intel chipset?

If your operating system is either Windows 7 or Vista, we recommend the following for maximum performance in all situations:

  • For Intel chipset, use the latest Intel driver version 9.6 or later. Please visit Intel for the latest driver downloads at http://www.intel.com/support/chipsets/imsm/sb/CS-031502.htm
  • For AMD chipset, no driver update is required.
  • For Nvidia chipset, please visit http://support.microsoft.com/kb/982018 for additional information.

What is WD Align utility software?

The WD Align utility enables older operating systems to operate at full performance on Advanced Format hard drives.

How long will running the WD Align utility take?

It will vary based on your operating system and how much data is on the disk, but the WD Align utility should take about 20 minutes to complete on freshly installed drive images with no data files. We recommend disabling Power Management prior to starting the partitioning alignment process.

Does the WD Align utility have to be run again if a drive is reformatted?

No, users will only need to run WD Align one time after initially installing Windows XP. Once Windows XP has been aligned, it will stay aligned even if the drive is reformatted or many files are added or removed.

What models utilize Advanced Format technology?

Some models of the WD Green and WD Blue product families are built using Advanced Format technology. Over time more models and capacities will be added. WD drives with Advanced Format technology include special installation information on the drive label so be sure to read the label on your drive before installing it.

Does WD Align work with Western Digital USB and Firewire drives, such as My Book and My Passport drives?

If you do not change the partitions on a Western Digital USB or Firewire drive, the drive is already optimally aligned. However, all Western Digital USB and Firewire drives are specifically designed to work with WD Align. If you repartition a Western Digital USB or Firewire drive, WD Align should be run to optimally align the partition or partitions.

Can I install my Advanced Format Drive into a USB enclosure?

Yes, you may install your Advanced Format Drive into a USB enclosure.

Drive Views:

Bottom View
Bottom View
Top Angle View
Top Angle View

Right Angle View
Right Angle View
Cover View
Cover View

Showcase:

360° View

Documentation:

Download the WD Blue Desktop Datasheet (PDF).

Download the WD Blue Desktop Specsheet (PDF).
