WD My Passport Pro
Portable RAID Storage


WD My Passport Pro

Western Digital External Storage
WD My Passport Pro
WD My Passport Pro Portable Hard Drive, 2 TB
#WDBRMP0020DBK-NESN
Get a Quote!



Overview:

Thunderbolt™ Speed. True Portability.

When high performance digital storage is critical to get the job done, My Passport Pro portable RAID storage is ideal for creative professionals in the field. With the unique design of an integrated Thunderbolt cable providing both power and performance, this high-capacity dual-drive boasts speeds as fast as 233 MB/s for HD video, user-selectable RAID and a compact all-aluminum enclosure.

Transfer, back up and edit in record time

Transfer, back up and edit in record time
Now you don't have to choose between speed and portability. This drive delivers both with transfer rates as high as 233 MB/s.* Transfer, edit, compile and stream graphics-intensive files in record time and meet your aggressive deadlines.

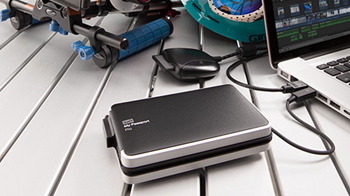

Durability for your on-the-go workflow

Durability for your on-the-go workflow
The anodized, all-aluminum enclosure helps protect the drives inside so whether you're filming a new documentary out in the field or presenting your new portfolio to a client, My Passport Pro is designed for any on-the-go workflow.

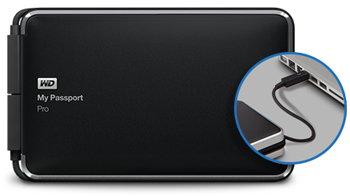

No power adapter required

No power adapter required
Powered directly through the Thunderbolt port on your MacBook, My Passport Pro frees up space in your field kit by eliminating the need for an AC adapter. And with the integrated cable that is tethered to the drive, you'll never lose your Thunderbolt cable on location.


Keep your creativity moving
Shipped in RAID 0 for maximum speed and capacity, My Passport Pro helps you edit and compile without skipping a beat. Your workflow keeps moving as fast as your imagination.

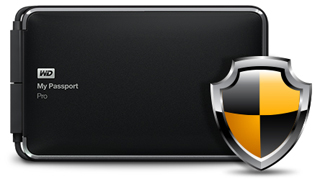

Protect your livelihood with RAID 1
Your work is your life. Protect it with RAID 1 mirror mode for double safe data protection. In this mode, the capacity is divided in half so that one half stores your data and the other half maintains a duplicate copy.

Capacity to keep up with your creations
Update your field kit with the high-capacity My Passport Pro. Available in 2 TB and 4 TB capacities, this drive has the capacity you need for your HD videos, photo shoots and other creative files. Finally, you can really take it all with you and keep creating.

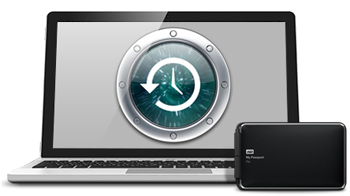

Works with Apple Time Machine to protect your creative masterpiece
Once you've captured your images, back them up quickly with Apple Time Machine.

Blazing-fast boot drive
Store your system files on this drive and use it as a blazing-fast boot drive so that when your deadline is looming your computer won't slow you down.

Plug-and-play setup
My Passport Pro is preformatted HFS+ J, so it's ready to use with your Mac straight out of the box.

Ready when you are
WD Diagnostics™ performs a S.M.A.R.T. status check on your drive in seconds so you know it's ready to go when your next job comes up.

3-year limited warranty
For added peace of mind, we back the drive with a 3-year limited warranty

*233 MB/s achieved on the 2 TB model. 230 MB/s achieved on the 4 TB model. Performance may vary based on hardware and system configuration.

Features:

Durabilty and professional style

Durabilty and professional style

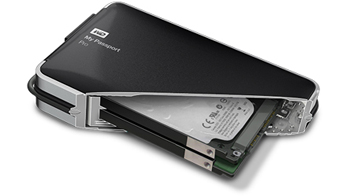

The dual drives in My Passport Pro are housed within an anodized all-aluminum enclosure that complements your professional style. With WD drives inside that meet our demanding requirements for durability, shock tolerance, and long-term reliability you can enjoy peace of mind knowing your creations are protected. So whether you're filming a new documentary out in the field and shipping your latest footage back to the studio, or presenting your new portfolio to a client, My Passport Pro is designed for any on-the-go workflow.

Protect your livelihood with RAID 1

Keep your creativity moving

Shipped in RAID 0 for maximum speed and capacity, My Passport Pro helps you edit and compile without skipping a beat. Your workflow keeps moving as fast as your imagination.

Protect your livelihood with RAID 1

Your work is your life. Protect it with RAID 1 mirror mode for double safe data protection. In this mode, the capacity is divided in half so that one half stores your data and the other half maintains a duplicate copy.

Capacity to keep up with your creations
No power adapter required

Powered directly through the Thunderbolt port on your MacBook, My Passport Pro frees up space in your field kit by eliminating the need for an AC adapter. And with the integrated cable that is tethered to the drive, you'll never lose your Thunderbolt cable on location.

Capacity to keep up with your creations

Update your field kit with the high-capacity My Passport Pro. Available in 2 TB and 4 TB capacities, this drive has the capacity you need for your HD videos, photo shoots and other creative files. Finally you really can take it all with you and keep creating.

Works with Apple Time Machine


Works with Apple Time Machine

Once you've captured you images, protect your creative masterpiece with the fast and easy backup of Apple Time Machine




Plug-and-play setup

Blazing fast boot drive

Store your system files on this drive and use it as a blazing-fast boot drive so that when your deadline is looming your computer won't slow you down.

Plug-and-play setup

My Passport Pro is preformatted HFS+ J, so it’s ready to use with Mac OS straight out of the box.

3-year limited warranty
Ready when you are

WD Diagnostics performs a S.M.A.R.T status check on your drive in seconds so you know it's ready to go when your next job comes up.

3-year limited warranty

For added peace of mind, we back the drive with a 3-year limited warranty.

Specifications:

Examples of the number of photos, songs, videos and any other files that can be stored on a hard drive are provided for illustrative purposes only. Your results will vary based on file size and format, settings, features, software and other factors.

Photo: Figures represent the average number of photos taken with a 6 megapixel camera in high-resolution JPEG mode with an average file size of 3.5 MB per photo. The actual number of images will vary by camera model and compression setting.

Hours: The DV format, regardless of its mode (miniDV, DVCAM, DVC-Pro) has a data rate of approximately 25mb/s (mega-bits per second). In storage terms, this translates to approximately 3.5MB/s (Megabytes per second) or 13GB/hr (Gigabytes per hour)

Song: Music capacity is based on 4 minutes per song. MP3 capacity is based on 128 Kbps bit rate and 11:1 audio compression ratio. Uncompressed CD quality is based on 1:1 audio compression ratio.

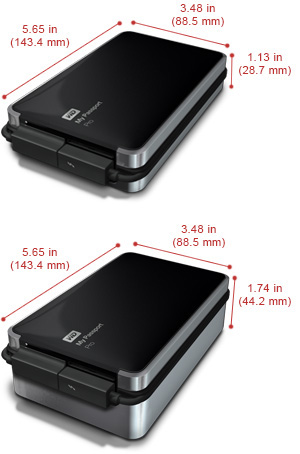

My Passport Pro Dimension

What It Holds

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Drive Size 4 TB 2 TB
Model Number WDBRNB0040DBK WDBRMP0020DBK
Interface Thunderbolt
Data transfer rate1 Up to 10 Gb/s (max)
Operating temperature 5° C to 35° C (41° F to 95° F)
Non-operating Temperature -20° C to 65° C (-4° F to 149° F)
System Compatiblity Formatted HFS + J for Mac OS Mavericks™ and Mountain Lion™
Height 5.65 in (143.4 mm) 5.65 in (143.4 mm)
Depth 1.74 in (44.2 mm) 1.13 in (28.7 mm)
Width 3.48 (88.5 mm) 3.48 (88.5 mm)
Weight 1.59 lb (0.72 kg) 1.01 lb (0.46 kg)
Limited Warranty 3 years
Package Contents
  • Portable hard drive
  • Integrated Thunderbolt cable
  • Quick Install Guide

1 A Thunderbolt host and Thunderbolt certified cable are required to obtain Thunderbolt speeds.

Drive Views:

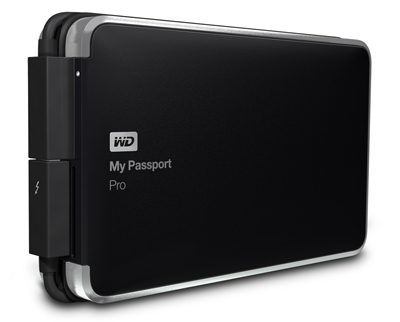

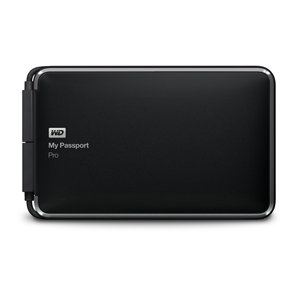

Front View
Front View

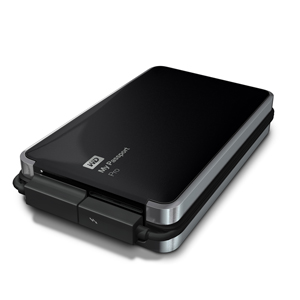

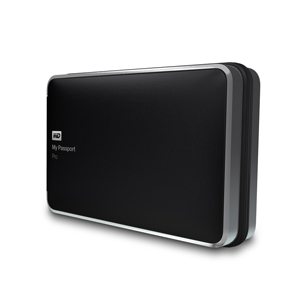

Left Angle View
Angle View
Rear Angle View
Rear Angle View

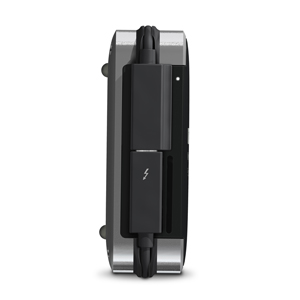

Side View
Side View

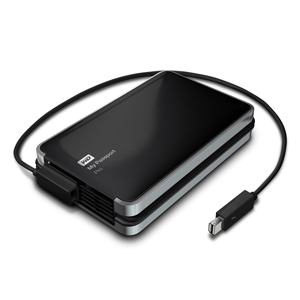

Pull-Out USB View
Pull-Out USB View
Package
Package

Showcase:

360° View

Documentation:

Download the WD My Passport Pro Datasheet (PDF).
