WD Re Datacenter 3.5-inch SAS Hard Drives
Performance-Optimized High-Capacity Storage for High-Availability Deployments

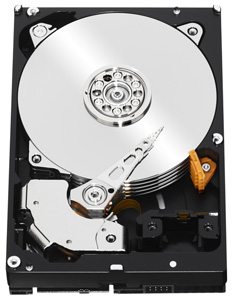

WD Re Datacenter 3.5-inch SAS Hard Drive

Western Digital Datacenter Hard Drives
WD RE SAS Hard Drives
WD Re SAS Hard Drive, 4 TB
Internal HD - 4 TB - 3.5 Inch - SAS 6 Gb/s - 7200 RPM - 32MB Cache
#WD4001FYYG
Get a Quote!
WD Re SAS Hard Drive, 3 TB
Internal HD - 3 TB - 3.5 Inch - SAS 6 Gb/s - 7200 RPM - 32MB Cache
#WD3001FYYG
Get a Quote!
WD Re SAS Hard Drive, 2 TB
Internal HD - 2 TB - 3.5 Inch - SAS 6 Gb/s - 7200 RPM - 32MB Cache
#WD2001FYYG
Get a Quote!
WD Re SAS Hard Drive, 1 TB
Internal HD - 1 TB - 3.5 Inch - SAS 6 Gb/s - 7200 RPM - 32MB Cache
#WD1001FYYG
Get a Quote!



Overview:

WD Re datacenter hard drives offer the highest error tolerance and MTBF of any capacity-optimized drive in heavy workload environments. With the highest error tolerance and MTBF of any capacity-optimized drive, WD Re delivers the durability and 24x7x365 reliability required in tightly packed vibration prone multi-drive systems. The combination of high-capacity, peak performance and robust design make WD Re drives ideal for heavy workload environments, cloud storage, RAID arrays, external storage arrays, data warehousing and mining applications.

High capacity Nearline drive

High capacity Nearline drive
Massive capacities up to 6 TB suit even the most demanding datacenter, enterprise server, or cloud storage needs.

Designed for high-intensity applications

Designed for high-intensity applications
Designed to handle up to 550 TB per year – the highest workload capability of any 3.5-inch hard drive – delivering both performance and reliability to any datacenter environment.

Designed for quality and reliability

Designed for quality and reliability
With up to 1.4 million hours MTBF, this high performance drive delivers the highest level of reliability for 24x7x365 operation in the most demanding storage environments.

WD ReDual actuator technology.
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy.

Vibration Protection.
Enhanced RAFF technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.

RAID-specific, time-limited error recovery (TLER).
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Dual port processor.
Twice the processing power to maximize performance.

StableTrac.
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.

Multi-axis shock sensor.
Automatically detects the subtlest shock events and compensates to protect the data.

Dynamic fly height technology.
Each read-write head's fly height is adjusted in real time for optimum reliability.

Thermal extended burn-in test.
Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.

Ideal for:
Ideal for NAS, servers, video surveillance, and other demanding write-intensive applications.

Features:


High capacity nearline drive
Massive capacities up to 6 TB to suit even the most demanding datacenter, enterprise server, or cloud storage needs.

Designed for high-intensity applications
Designed to handle workloads up to 550 TB per year – among the highest workload capability of any 3.5-inch hard drive – delivering both performance and reliability to any datacenter environment.

Designed for quality and reliability
With up to 1.2 million hour MTBF, this high performance drive delivers durability and reliability for 24x7x365 operation in the most demanding storage environments.

Dual processor
Twice the processing power to maximize performance.

Dual actuator technology
A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy.

Vibration protection
Enhanced RAFF™ technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over the previous generation of drives.

Dynamic fly height technology
Each read-write head's fly height is adjusted in real time for optimum reliability.

StableTrac™
The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
(2 TB and above)

NoTouch ramp load technologyNoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Multi-axis shock sensor
Automatically detects the subtlest shock events and compensates to protect the data.

RAID-specific, time-limited error recovery (TLER)
Prevents drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.

Thermal extended burn-in test
Each drive is put through extended burnin testing with thermal cycling to ensure reliable operation.

Dual port, full duplex connectivity
Offers higher reliability, performance and data availability by eliminating single points of failure, designed for high-availability mission-critical enterprise systems.

Self-encrypting Drive (SED) Option
SAS Drive: Optional secure model for encrypting drives – Utilizing an AES 256 bit encryption engine for Crypto erase capability, WD supports the industry standard implementations of both the SCSI Sanitize command with Crypto Erase and the Trusted Computing Group (TCG) command set.*

Applications

High-performance computing, high-reliability cloud storage, RAID arrays, high-availability external storage arrays, data warehousing and mining.

The WD Advantage

WD puts our datacenter products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the high quality and reliability standards of the WD brand. Following a FIT test the Enterprise System Group (ESG) testing validates interoperability with HBAs, operating systems and drivers to ensure an even greater level of quality, reliability and peace of mind.

WD also has a detailed Knowledge Base with helpful articles and software utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.

* SED drives may require TCG-compliant host or controller support. SED drives may not be available in all countries.

Specifications:

Examples of the number of photos, songs, videos and any other files that can be stored on a hard drive are provided for illustrative purposes only. Your results will vary based on file size and format, settings, features, software and other factors.

Photo: Figures represent the average number of photos taken with a 6 megapixel camera in high-resolution JPEG mode with an average file size of 3.5 MB per photo. The actual number of images will vary by camera model and compression setting.

Hours: The DV format, regardless of its mode (miniDV, DVCAM, DVC-Pro) has a data rate of approximately 25mb/s (mega-bits per second). In storage terms, this translates to approximately 3.5MB/s (Megabytes per second) or 13GB/hr (Gigabytes per hour)

Song: Music capacity is based on 4 minutes per song. MP3 capacity is based on 128 Kbps bit rate and 11:1 audio compression ratio. Uncompressed CD quality is based on 1:1 audio compression ratio.

WD RE SAS Dimensions

What It Holds

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Drive Size 4 TB 3 TB 2 TB 1 TB
Specifications
Model Number WD4001FYYG WD3001FYYG WD2001FYYG WD1001FYYG
Interface SAS 6 Gb/s SAS 6 Gb/s SAS 6 Gb/s SAS 6 Gb/s
Formatted Capacity1 4 TB 3 TB 2 TB 1 TB
User sectors per drive 7,814,037,168 5,860,533,168 3,907,029,168 1,953,525,168
SCSI command queuing Yes Yes Yes Yes
Form factor 3.5-inch 3.5-inch 3.5-inch 3.5-inch
RoHS Compliant2 Yes Yes Yes Yes
Performance
Data transfer rate (max)
Buffer to host
host to/from drive (sustained)

6 Gb/s
182 MB/s

6 Gb/s
175 MB/s

6 Gb/s
170 MB/s

6 Gb/s
170 MB/s
Cache (MB) 32 32 32 32
Rotational Speed (RPM) 7200 7200 7200 7200
Reliability/Data Integrity
Load/unload cycles3 600,000
Non-recoverable read errors per bits read <1 in 1016
MTBF (hours)4 1,400,000
AFR (%)4 0.63
Limited warranty (years)5 5
Power Management
Average power requirements (W)
Sequential read
Sequential write
Random read/write
Idle

11.2
10.9
11.5
9.2

11.2
10.9
11.5
9.2

8.7
7.5
9
6.9

8.7
7.5
9
6.9
Environmental Specifications6
Operating Temperature 5 to 55° C
Non-operating Temperature -40 to 70° C
Shock (Gs)
Operating (2 ms, read/write) 30 30 30 30
Operating (2 ms, read) 65 65 65 65
Non-operating (2 ms) 300 300 300 300
Average acoustics (dBA)7
Idle mode 31 31 31 31
Performance seek mode 34 34 34 34
Physical Dimensions
Height (in./mm, max)8 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 1.66/0.75 1.66/0.75 1.55/0.70 1.55/0.70

1 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 3 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATAIO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
2 WD hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.
3 Controlled unload at ambient condition.
4 Product MTBF and AFR specifications are based upon a 40°C base casting and system workloads of up to 550 TB/year (workload is defined as the amount of user data transferred to or from the hard drive).
5 The term of the limited warranty may vary by region. Visit http://support.wdc.com/warranty for details.
6 No non-recoverable errors during operating tests or after non-operating tests.
7 Sound power level.

WD Datacenter Storage Portfolio:

Elemental storage building blocks for every datacenter

WD's datacenter hard drives are built to run in always-on environments where they are required to maintain maximum performance and data integrity within complex systems running massive scale applications.

In addition to overall performance and reliability, these drives feature additional attributes that are unique to enterprise-class hard drives for datacenter deployments:

  • Cleanliness
  • Error Rate
  • Drive to Drive Variation Linear and Radial Vibration
  • Performance Degradation
  • Number of Mapped Defects, Defects per Surface
  • Head Amplitude, Track Width
  • Tracks per Disk
  • Robust Factory Process and Procedures

From multiple processors and redundant power supplies to specialized storage devices and robust interfaces such as SAS, datacenters demand the highest quality and most reliable components to ensure maximum uptime, expandability, and data integrity.

Through fundamental enterprise-class design, specialized features and technologies and rigorous manufacturing and test processes, WD delivers the right storage building blocks for every datacenter.

WD Re

Designed to deliver optimal durability in your datacenter.

WD ReWith the industry's highest capacity, class-leading reliability and ten times the workload capability of desktop drives, WD Re is the workhorse of the WD's datacenter portfolio. WD Re is perfect for high-availability storage arrays such as RAID, that demand the most robust storage device available. WD Re's high performance, capacity and reliability make it ideal for data warehousing/mining and high-performance computing. WD Re is available with either a SAS or SATA interface for flexibility and maximum compatibility. The drive's SAS interface contributes to its high reliability and manageability in high-availability arrays.

WD Re Purchase Decision Criteria
Highlights:
  • Designed for RAID configurations
  • Highest error tolerance of any capacity-optimized drive
  • Industry-leading combination of capacity, reliability and workload capability

Best for:

On-line analytical processing (OLAP), high-performance computing, high-reliability cloud storage, high-availability RAID arrays.

If your application requires capacity without compromising reliability and workload capability, WD Re is the right datacenter storage device for you.


WD Se

Designed to deliver optimal scalability in your datacenter.

WD SeWith the ideal combination of capacity, reliability and workload capability for many scale-out architectures, WD Se provides a cost-effective solution for large-scale cloud deployments and entry to mid-range arrays designed for low workload applications. With its true enterprise-class pedigree and design, WD Se is ideal for multi-bay enclosures, from entry level servers, to mid-range Network-Attached Storage (NAS), to bulk cloud storage. WD Se employs Advanced Format and the SATA interface to deliver the lowest cost per gigabyte of any enterprise-class drive in the portfolio. This enables WD Se to deliver flexibility and value in all medium-workload applications.

WD Se Purchase Decision Criteria
Highlights:
  • Optimized for replicated and NAS environments
  • Feature-set enhanced to enable lower cost per gigabyte
  • Enterprise-class design delivers capacities up to 4 TB

Best for:

Bulk cloud storage, social networking, NAS, Big Data, replication-based distributed file systems, backup and archiving.

If your application deployment requires enterprise-class features and can withstand lower performance and reliability to gain a more cost-effective solution, WD Se is the right datacenter storage device for you.


WD Datacenter HDD Technology

Datacenters are building out at an incredible rate to keep up with the tremendous growth of data. A 42U storage rack may include over 900 drives, providing almost 3 PB of storage. A system that contains many drives needs to be specially designed with features and technologies that ensure reliability, scalability, high availability and deliver consistent levels of performance. However, some of these features and technologies create challenges for hard drives – environmental, compatibility and workload challenges.

Here is a deeper look at these challenges and a explanation of how hard drives need to be designed for enterprise-class datacenter and cloud storage environments. Needless to say, datacenters present challenging environments for hard disk drives, and therefore require a fundamentally different class of drive – an enterprise-class drive.

Challenge #1: Environment

The datacenter environment employs specialized server and storage systems containing high-speed fans, densely-packed drives and temperature fluctuations.

IT Concerns:

  • High-speed fans are necessary to manage thermals but generate a wide range of vibrations
  • Densely-packed drives induce vibration on each other, potentially causing system-level performance degradation
  • Redundant power supplies reflect the multiple fail-over technologies that ensure 24/7 operation
  • Datacenter geographical location and cooling solutions vary, creating temperature and altitude extremes

WD's solution: A storage portfolio built to withstand harsh datacenter conditions.

  • RAFF + tied shaft motors are designed to compensate for multi-drive enclosures while ensuring consistent levels of performance
  • Higher quality components - designed for 24/7/365 operation (8,760 power-on hours per year)
  • High reliability with class-leading 5-year enterprise-grade warranty
  • Support for a wide range of temperature and altitude ratings


Challenge #2 Compatibility

Datacenters require different host bus adapters and fault-tolerance schemes like RAID and replication to ensure maximum performance, manageability and availability of a large amount of storage space.

IT Concerns:

  • RAID-based arrays demand high performance, tight performance variation, high error tolerance, and multiple interface options
  • Replication-based systems deliver high levels of data availability vs. traditional RAID and can tolerate lower reliability and lower performing devices
  • IT managers require interoperability across a wide range of host bus adapters that are deployed within their datacenters

WD's solution: Storage devices that work flawlessly with hundreds of different controllers in both RAID and replication arrays.

  • Higher error tolerances, tight performance variation, and SAS and SATA options for RAID systems
  • Datacenter quality products with right-sized error rates and performance that are optimized for replicated systems
  • Broad HBA compatibility including functional and signal-integrity testing also tuned and optimized for system interoperability

RAID-based array and Replication array

Challenge #3 Workload

Datacenter and cloud storage systems use a wide variety of operating systems and applications that need to work flawlessly with their chosen device. Workloads are typically ten times greater than the workload of desktop or notebook computers and the storage devices must be able to handle workload-intensive applications 24 hours a day, 365 days a year.

IT Concerns:

  • Applications have varying workloads – heavy reads or writes, sequential or random performance, low latency
  • Some datacenter applications require 100% workload, 24 hours per day, 365 days per year
  • OEMs are typically not aware of the types of workloads being employed on systems they sell

WD's solution: Storage devices that work flawlessly with hundreds of different controllers in both RAID and replication arrays.

  • Higher RPM models for performance demanding applications
  • Products are designed for 8,760 power-on hours per year, reading and writing continuously
  • Massive testing – actual systems, actual workloads
  • Specialized manufacturing and test processes

WD Surveillance Storage:

WD Surveillance StorageSafety and security are always a concern. Governments, corporations and even individuals must protect themselves and their assets. One of the most popular methods employed to enhance security and safety is with video – one of the most storage-intensive fi le formats around. As the affordability of high-defi nition surveillance cameras has declined and their widespread use has been adopted, the demand for reliable and scalable storage has skyrocketed. As a result - according to IHS - the market for enterprise storage solutions in security is forecasted to grow by a 14.8% compound annual growth rate (CAGR) over the next fi ve years.1 As evidenced by the data, increased presence and enhanced requirements of modern surveillance systems, there is a pressing need for specialized hard drives that offer more storage capacity and advanced features designed specifi cally for DVRs, NVRs, CCTV, IPTV and other surveillance mediums.

Surveillance storage for peace-of-mind

As a worldwide storage leader, WD strives to design drives to exceed the demanding requirements of digital video surveillance. With design, development, manufacturing and industry-leading customer support services, WD’s surveillance partners receive best-in-class products with innovative feature sets, ensuring that digital video surveillance systems equipped with WD drives are optimized for maximum performance. Whether you’re protecting your personal assets and loved ones or monitoring the business you worked hard to build, you can rely on surveillance storage built by one of the largest hard drive manufacturers in the world. WD surveillance hard drives are designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video playback when you need it most.

WD gives you the security you want at the scale you need

Standard desktop hard drives are designed to operate approximately eight hours a day for five days per week. Consider now that a DVR or high-end surveillance system typically runs 24 hours per day, for seven days per week recording numerous simultaneous video streams. What’s needed for applications like these is another type of drive, a WD surveillance drive.

WD has designed a storage lineup perfect for digital video surveillance and its many unique environments and application sets. WD’s surveillance drives enable DVR, NVR, CCTV, IPTV and other digital video surveillance systems. These purpose-built drives deliver a comprehensive range of features and capabilities such as high-resolution image quality, streaming video from multiple high-definition cameras, video archiving with ultra-fast data access and on-demand video playback.

Regardless of the surveillance environment, whether it’s banking, casino, retail, commercial, residential, corporate, government or law enforcement, WD surveillance drives deliver the performance, capacity and reliability that surveillance applications require.

Desktop Drive Limitations

  • Not designed for 24/7 surveillance environments
  • No RAID support with error recovery controls
  • Suboptimal power efficiency
  • Not designed or tested for surveillance environments
  • Potential integration and upgradability difficulties
  • Minimal or no power backup in the event of power loss

Surveillance Hard Drive Benefits

  • Built for 24/7 surveillance environments
  • Supports multiple bays and multiple camera streams
  • Engineered for compatibility in wide range of surveillance systems
  • Enables upgrades & expansion of existing surveillance systems
  • Lower power consumption

Understanding today’s surveillance market

The surveillance market is splitting into two primary types of systems; DVR – primarily analog systems that have cameras directly connected to the system, and NVR – digital systems that have cameras connected via IP (internet protocol). Due to the fact that DVRs have a finite number of cameras that can be physically attached, the number of streams and maximum workload on the hard drives can be determined. Since NVRs theoretically can have an unlimited number of cameras attached to the system, the number of streams, workload on the hard drive, and the system’s retention period can scale beyond that of a DVR.*

*There are limitations, primarily tied to system capability, so NVRs are not infinitely scalable.

Choosing the right surveillance-class drive

WD offers a complete line of surveillance-class storage designed for home, small to medium business or mission critical security systems. These hard drives are engineered to support the rigorous 24/7, always-on, high-definition video requirement set unique to surveillance security systems. Choose a hard drive that is designed and engineered for surveillance systems and enjoy the peace-of-mind you can only get from surveillance-class storage.

  WD Purple WD Purple NV WD Re
  WD Purple WD Purple NV WD Re
Summary Balanced reliability, performance and cost storage. Purpose built storage for NVR Surveillance systems. Maximum reliability and performance storage for large business and mission critical surveillance.
Form Factor & Capacity 3.5-inch: 1 TB - 6 TB 3.5-inch: 4 TB & 6 TB 3.5-inch: 250 GB - 6 TB
Application Mainstream Surveillance Mid-range and Small-Med Business Surveillance High-end and Mission Critical Surveillance
Usage Environment Residential / SMB / Retail / Commercial Residential / SMB / Retail / Commercial Retail / Commercial / Banking / Casino / Corporate / Government / Law Enforcement
Advantages
  • Built for 24/7 surveillance environments
  • Engineered for compatibility in a wide range of surveillance systems
  • Improved performance with AllFrame Technology
  • Low power & quiet operation
  • Enables upgrades & expansion of existing surveillance systems
  • Designed specifically for NVR surveillance systems (and backwards compatibile with DVR systems)
  • Support for greater than 8 NVR surveillance bays with up to 64 HD camera count
  • Increased workload capabilities (TB/year) with optimized power consumption
  • Available in 4 TB & 6 TB capacities
  • Designed with tarnish resistant components for premium protection in harsh environments
  • Designed for heavy application workloads
  • StableTrac and RAFF for enhanced vibration tolerance
  • Optional Self-encrypting Drive (SED) models
  • 24x7x365 reliability
Number of Drive Bays 1 to 8 Bays ≥ 8 Bays (No Limit)* ≥ 8 Bays (No Limit)
Number of Cameras 1 to 32 Cameras 1 to 64 Cameras No Limit
Power on Hours 24/7 24/7 24/7
RAID Support Yes Yes Yes
Limited Warranty 3-Year 3-Year 5-Year

* The specific number of cameras and hard drive bays that can be supported will be dependent on a number of criteria including but not limited to: types and capability of cameras installed (resolution, frames per second, additional features) and the system’s hardware and software capability

Estimated Capacity

There are an infinite number of different combinations of camera resolutions, live cameras, frames per second, and archive settings. WD understands the uniqueness of each combination and offers a full line of capacity products and points to fulfill the complex needs surveillance systems present.

Estimated Capacity Requirements, in TB based on follow system set up:
Standard Definition Camera Resolution: 0.3 megapixesl (640 x 480)
30 frames per second
Compression: H.264

WD Color

0.3 megapixesl (640 x 480) Estimated Capacity Chart

Estimated Capacity Requirements, in TB based on follow system set up:
High Definition Camera Resolution: 2.1 megapixels or 1080p (1920x1080)
30 frames per second
Compression: H.264

WD Color

2.1 megapixels or 1080p (1920x1080) Estimated Capacity Chart

Lower temperature means greater reliability

In addition to high levels of clarity, long-term reliability and low-power consumption are equally critical to surveillance systems. Designed for 24/7 operation, WD surveillance-class drives consume less power during spin-up and operation, minimize heat dissipation and vibration, and operate reliably without compromising performance. Reducing heat, noise, and vibration enables surveillance applications to operate more reliably over longer periods of time.

Thermal images taken at the WD labs demonstrate how much cooler WD drives are when compared to the competitors' standard 7200 RPM hard drives.

Thermal images taken at the WD labs demonstrate

When a drive operates at a lower temperature its lifespan increases.

In addition to high levels of clarity, long-term reliability and low-power consumption are equally critical to surveillance systems. Designed for 24x7 operation, WD drives with WD GreenPower Technology™ consume less power during spin-up and operation, minimize heat dissipation and vibration, and operate reliably without compromising performance. Reducing heat, noise, and vibration enables surveillance applications to operate more reliably over longer periods of time.

When a drive operates at a lower temperature its lifespan increases.

Annual Failure Rate vs. Hard Drive Base Casting Temp
Annual Failure Rate vs. Hard Drive Base Casting Temp

The illustration below demonstrates the annual failure rate and how it correlates to the hard drive base casting temperature and power on hours (POH). Failure rates significantly increase as temperature rises. In a system operating 24x7 the impact is substantial.

The evolution of of surveillance

Safety and security are always a concern. Governments, corporations, and even individuals must protect themselves and their assets. One of the most popular methods employed to enhance security and safety is digital video surveillance. With increased presence and enhanced requirements of modern surveillance systems, there is a pressing need for specialized hard drives with more storage capacity and advanced features designed specifically for SDVRs, CCTV, IPTV and other surveillance mediums. As a worldwide storage leader, WD continually strives to design drives to exceed the demanding requirements of digital video surveillance. With design, development, manufacturing, and industry-leading customer support services, WD's surveillance partners receive best-in-class products with innovative feature sets, ensuring that digital video surveillance systems equipped with WD drives are optimized for maximum performance.

Surveillance storage for peace-of-mind

Whether you're protecting your personal assets and loved ones or monitoring the business you worked hard to build, you can rely on surveillance-class storage built by one of the largest hard drive manufacturers in the world. WD Purple surveillance hard drives are designed for high temperature, always-on, surveillance security systems to ensure reliability and quality video play back when you need it most. Experience the security of knowing you're using a surveillance-class drive designed by a leader in the storage industry.

Drive Views:

Bottom View
Bottom View
Top Angle View
Top Angle View

Right Angle View
Right Angle View
Cover View
Cover View

Documentation:

Download the WD RE SAS Specsheet (PDF).
