WD Red NAS 3.5-inch Hard Drives
Storage for 1 to 8 bay NAS Solutions

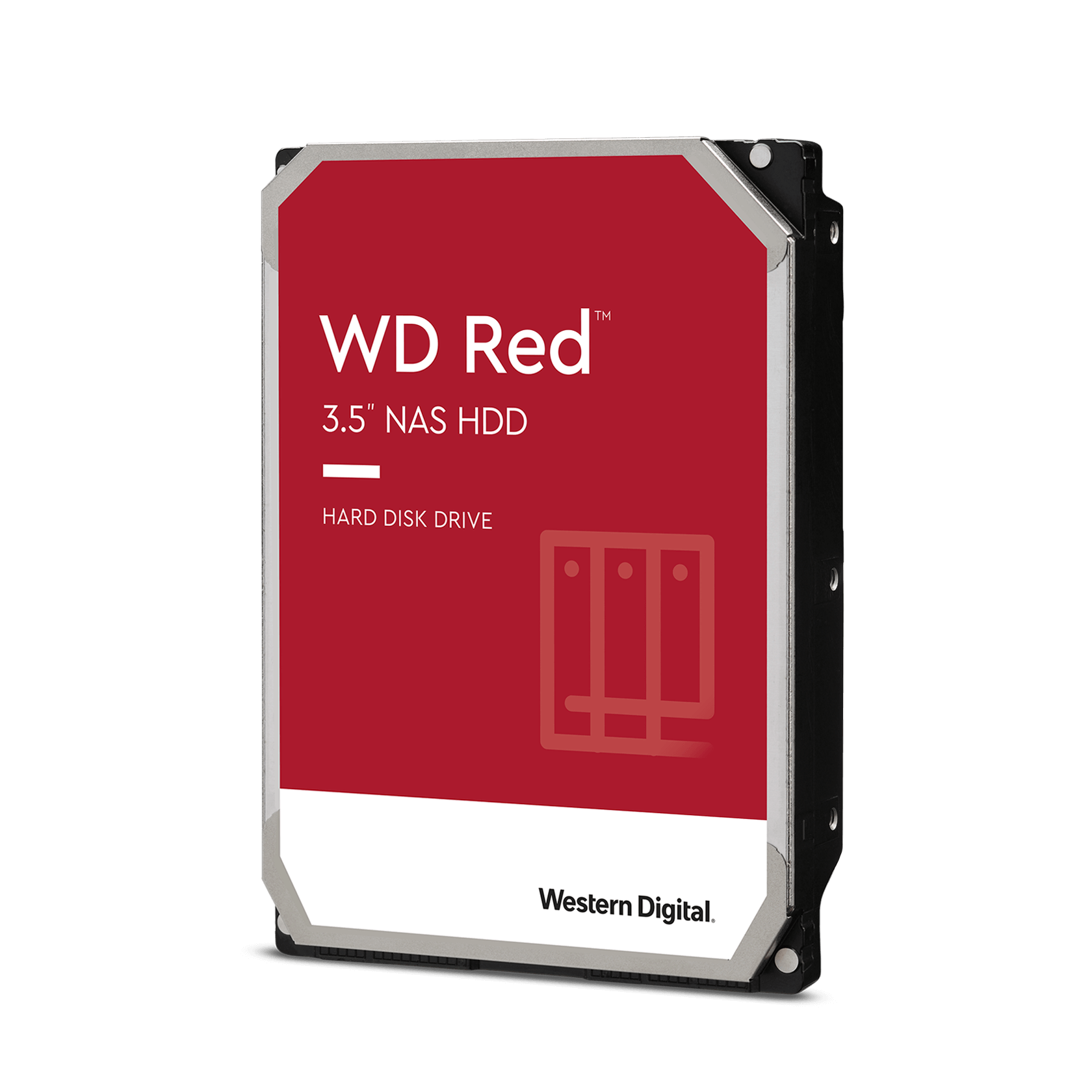

WD Red NAS Hard Drive

Western Digital NAS Hard Drives
WD Red Hard Drives
WD Red Hard Drive, 6 TB
Internal HD - 6 TB - 3.5 Inch - SATA 6 Gb/s - IntelliPower - 64MB Cache
#WD60EFRX
Our Price: $262.99
WD Red Hard Drive, 5 TB
Internal HD - 5 TB - 3.5 Inch - SATA 6 Gb/s - IntelliPower - 64MB Cache
#WD50EFRX
Our Price: $470.99
WD Red Hard Drive, 4 TB
Internal HD - 4 TB - 3.5 Inch - SATA 6 Gb/s - IntelliPower - 64MB Cache
*Available Mid-March 2017
#WD40EFRX
Our Price: $164.99
WD Red Hard Drive, 3 TB
Internal HD - 3 TB - 3.5 Inch - SATA 6 Gb/s - IntelliPower - 64MB Cache
#WD30EFRX
Our Price: $120.99
WD Red Hard Drive, 2 TB
Internal HD - 2 TB - 3.5 Inch - SATA 6 Gb/s - IntelliPower - 64MB Cache
#WD20EFRX
Our Price: $96.99
WD Red Hard Drive, 1 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - IntelliPower - 64MB Cache
#WD10EFRX
Our Price: $66.99



Overview:

WD Red is designed specifically for NAS systems that have 1 to 8 drive bays in both 3.5-inch and 2.5-inch form factors. The drives are designed and extensively tested for compatibility in the unique 24x7 operating environment and for the demanding system requirements of home and small office NAS.

Expanded solutions

Expanded solutions
Our formula of success has led growth of WD Red into higher capacities and expansion into new 2.5-inch solutions. We now offer a broader, more comprehensive portfolio of NAS hard drives for our customers. It is not just about NAS drives, it is RED volutionary.

Next-generation experience

Next-generation experience
Every component, line of code, and product decision was built on our passion and determination to deliver the best NAS experience. The next generation of WD Red hard drives delivers on this promise with massive capacity and NASware 3.0, which further improves drive reliability and protects your data in the event of a power loss or power disruption.

Experienced in NAS

Experienced in NAS
In all of our cultures around the world, first impressions are what leave a mark. With superior technology that is driven to impress, WD Red is a reflection of the most extensive NAS partner compatibility-testing list that is available on the market*. That means when you buy a NAS enclosure, you can trust that WD Red will be the most compatible drive available. Our pride is in our product and our vision is shared with our customers.


NAS for home

NAS for home

Take your connected home environment to the next level with a NAS system that is equipped with WD Red hard drives and enjoy streaming your media, backing up your computers, file sharing and managing your digital content faster and easier. The WD Red NASware 3.0 experience with increased compatibility makes sharing from your mobile device, computer, TV, stereo and more an instant gratification. WD Red enables you to create your own reliable Personal Cloud.

NAS for small business

NAS for small business

Increase the efficiency and productivity of your small business with WD Red hard drives for your 1 to 8 bay NAS system. WD Red comes equipped with NASware 3.0, which increases system compatibility allowing for seamless integration with your existing network infrastructure. Add value to your business by enabling your employees to quickly share their files and back up folders reliably with WD Red NAS hard drives in your NAS solution. For medium to large business environments from 8 to 16 bays, use WD Red Pro.

WD RedThe WD Red family just got bigger
Our formula of success has led to the growth of WD Red into the highest capacities possible. Available up to 6 TB, WD offers an even broader, more comprehensive portfolio of NAS solutions for our customers with WD Red and WD Red Pro spanning a total of 1 to 16 bays.

3D Active Balance™ Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time. (EFRX models only)

Professional solutions
Designed specifically with SMB customers in mind, the WD Red family has expanded with the addition of WD Red Pro, which is available for the 8 to 16 bay medium to large-scale NAS environments. With capacities from 2 to 4 TB, WD Red Pro carries a 5-year limited warranty and was engineered to handle the increased workloads from your business.

Enhanced Reliability
Since your NAS system is always on, a highly reliable drive is essential. With a 35% MTBF improvement over standard drives, the WD Red drive with NASware 3.0 is designed for the 24x7 environment.

NASware™ grows to 3.0
Built off of our determination to deliver the best NAS experience, NASware 3.0 extends our promise by further optimizing WD Red for the NAS environment with added support for 6 to 8 NAS bays. WD Red now supports small NAS systems from 1 to 8 bays thanks to NASware 3.0, which further improves drive compatibility and reliability. At 48 TB of total capacity in an 8 bay system, WD Red expands your NAS experience.

The right choice
WD Red is designed specifically for home and small office NAS systems and PCs with RAID.

Lower Operating Temperatures
Innovative technology reduces power consumption and lowers the operating temperature, resulting in a more reliable and affordable solution for always on NAS environments.

Longer Warranty Coverage
WD Red hard drives are backed by a 3-year limited warranty for greater peace of mind.

Premium Support
Every WD Red hard drive comes with our world-class professional support services including a premium dedicated 24/7 support line (available in English, other regional support hours vary).

Ideal for:
Specifically designed and tested for small office and home office, 1-8 bay NAS systems and PCs with RAID.

everything more efficient and reliableFeatures:

NASware 3.0

NASware grows to 3.0
Built off of our determination to deliver the best NAS experience, NASware 3.0 extends our promise by further optimizing WD Red for the NAS environment with added support for 6 to 8 NAS bays. WD Red now supports small NAS systems from 1 to 8 bays thanks to NASware 3.0, which further improves drive compatibility and reliability. At 48 TB of total capacity in an 8 bay system, WD Red expands your NAS experience.


The WD Red family just got bigger

The WD Red family just got bigger
Our formula of success has led to the growth of WD Red into the highest capacities possible. Available up to 6 TB, WD offers an even broader, more comprehensive portfolio of NAS solutions for our customers spanning from a total of 1 to 16 bays. The WD Red family just got bigger.

Professional solutions

Professional solutions
Designed specifically with SMB customers in mind, the WD Red family has expanded with the addition of WD Red Pro, which is available for the 8 to 16 bay medium to large-scale NAS environments. With capacities up to 4 TB, WD Red Pro carries a 5-year limited warranty and was engineered to handle the increased workloads from your business.

Experienced in NAS

Experienced in NAS
WD Red is a reflection of the most extensive NAS partner compatibility- testing list that is available on the market. That means when you buy a NAS enclosure, you can trust that WD Red will be the most compatible drive available. Our pride is in our product and our vision is shared with our customers.


3D Active Balance Plus
Our enhanced dual-plane balance control technology significantly improves the overall drive performance and reliability. Hard drives that are not properly balanced may cause excessive vibration and noise in a multi-drive system, reduce the hard drive life span, and degrade the performance over time. (EFRX models only)

The right choice
WD Red is designed specifically for home and small office NAS systems and PCs with RAID.

The secret is the next-generation technology

The secret is the next-generation technology
WD's next generation NASware 3.0 technology improves NAS storage performance by reducing common hard drive concerns in NAS systems. This includes concerns for things like compatibility, integration, upgrade ability, reliability and cost of ownership that are experienced with a hard drive designed for desktop computers.

Longer warranty coverage
WD Red hard drives are backed by a 3-year limited warranty for greater peace of mind and a longer warranty coverage that matches most NAS system manufacturers.

Enhanced reliability
Since your NAS system is always on, a highly reliable drive is essential. With a 35% MTBF improvement over standard drives, the WD Red drive with NASware 3.0 is designed for the 24x7 environment.

NAS compatibility
Advanced firmware technology built into every WD Red drive, NASware 3.0 enables seamless integration, robust data protection and optimal performance for systems operating in NAS and RAID environments.

Energy efficient and money saving

Energy efficient and money saving
We keep power consumption low, which keeps your NAS system happy, and your wallet too.

Lower operating temperatures
Innovative technology reduces power consumption and lowers the operating temperature, resulting in a more reliable and affordable solution for always on NAS environments.

We offer premium support.

Need help? We offer premium support.

Every WD Red hard drive comes with our world-class professional support services including a premium dedicated 24/7 support line and a 3-year limited warranty.

Applications

WD Red NAS hard drives are recommended for use in home and small office 1-8 bay NAS systems. For systems that use more than 8 bays, please consider WD Red Pro hard drives.*

The WD Advantage

WD puts our products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it.

* WD hard drives are designed and tested for use in specific applications and environments. This ensures that your hard drive is compatible with and functions properly in your application. Our hard drives are warranted against defects in materials and workmanship in the system for which they were designed. Use in systems other than for what the hard drive was designed could result in compatibility problems that affect proper function, unrelated to material and/or workmanship defects. For best results, be sure to select the appropriate product for your application by consulting our product spec sheets on our website at www.wd.com or by calling our customer support line where we would be happy to help you through the selection process.

Specifications:

Examples of the number of photos, songs, videos and any other files that can be stored on a hard drive are provided for illustrative purposes only. Your results will vary based on file size and format, settings, features, software and other factors.

Photo: Figures represent the average number of photos taken with a 6 megapixel camera in high-resolution JPEG mode with an average file size of 3.5 MB per photo. The actual number of images will vary by camera model and compression setting.

Hours: The DV format, regardless of its mode (miniDV, DVCAM, DVC-Pro) has a data rate of approximately 25mb/s (mega-bits per second). In storage terms, this translates to approximately 3.5MB/s (Megabytes per second) or 13GB/hr (Gigabytes per hour)

Song: Music capacity is based on 4 minutes per song. MP3 capacity is based on 128 Kbps bit rate and 11:1 audio compression ratio. Uncompressed CD quality is based on 1:1 audio compression ratio.

WD Red Dimensions

What It Holds

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Drive Size 6 TB 5 TB 4 TB 3 TB 2 TB 1 TB
Specifications
Model Number1 WD60EFRX WD50EFRX WD40EFRX WD30EFRX WD20EFRX WD10EFRX
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Formatted Capacity2 6 TB 5 TB 4 TB 3 TB 2 TB 1 TB
Form factor 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch 3.5-inch
Advanced Format (AF) Yes Yes Yes Yes Yes Yes
Native command queuing Yes Yes Yes Yes Yes Yes
RoHS Compliant3 Yes Yes Yes Yes Yes Yes
Performance
Data transfer rate (max)
Buffer to host
host to/from drive (sustained)

6 Gb/s
175 MB/s

6 Gb/s
170 MB/s

6 Gb/s
150 MB/s

6 Gb/s
147 MB/s

6 Gb/s
147 MB/s

6 Gb/s
150 MB/s
Cache (MB) 64 64 64 64 64 64
Rotational Speed (RPM)3 IntelliPower IntelliPower IntelliPower IntelliPower IntelliPower IntelliPower
Reliability/Data Integrity
Load/unload cycles5 600,000
Non-recoverable read errors per bits read <1 in 1014
MTBF (hours)6 1,000,000
Limited warranty (years)7 3
Power Management
12VDC (A, peak) 1.75 1.75 1.75 1.73 1.73 1.20
Average power requirements (W) Read/Write: 5.3
Idle: 3.4
Standby: 0.4
Sleep: 0.4
Read/Write: 5.3
Idle: 3.4
Standby: 0.4
Sleep: 0.4
Read/Write: 4.5
Idle: 3.3
Standby: 0.4
Sleep: 0.4
Read/Write: 4.1
Idle: 3.0
Standby: 0.4
Sleep: 0.4
Read/Write: 4.1
Idle: 3.0
Standby: 0.4
Sleep: 0.4
Read/Write: 3.7
Idle: 3.2
Standby: 0.6
Sleep: 0.6
Environmental Specifications8
Operating Temperature9 0 to 65° C
Non-operating Temperature -40 to 70° C
Shock (Gs)
Operating (2 ms, read/write) 30 30 30 30 30 30
Operating (2 ms, read) 65 65 65 65 65 65
Non-operating (2 ms) 250 250 250 250 250 350
Average acoustics (dBA)10
Idle mode 25 25 25 23 23 21
Performance seek mode 28 28 28 24 24 24
Physical Dimensions
Height (in./mm, max) 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 1.65/0.75 1.65/0.75 1.50/0.68 1.40/0.64 1.32/0.60 0.99/0.45

1 Not all products may be available in all regions of the world.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 3 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 WD hard drive products manufactured and sold worldwide after June 8, 2011, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.
4 A fine-tuned balance of spin speed, transfer rate and caching algorithms designed to deliver both significant power savings and solid performance. For each drive model, WD may use a different, invariable RPM.
5 Controlled unload at ambient condition.
6 Based on a typical NAS product environment under normal operating conditions.
7 The term of the limited warranty may vary by region. Visit http://support.wd.com/warranty for details.
8 No non-recoverable errors during operating tests or after non-operating tests.
9 On the base casting.
10 Sound power level.

NASware:

Every component, line of code, and product decision was built on our passion and determination to deliver the best NAS experience. The next generation of WD Red hard drives delivers on this promise with massive capacity and NASware 3.0, which further improves drive reliability and protects your data in the event of a power loss or power disruption.

NAS or RAID thermal environmentWD’s exclusive NASware technology, built into every WD Red hard drive.

WD’s exclusive NASware technology, which is built into every WD Red™ hard drive, improves NAS storage performance by reducing common hard drive concerns in NAS systems including concerns for things like compatibility, integration, upgradeability, reliability and cost-of-ownership that are experienced with a hard drive designed for desktop computers.

Desktop hard drives are designed for desktop computers.
WD Red = NAS.

Desktop hard drive are designed for optimum performance and reliability in a desktop personal computer. Although they are an affordable alternative to enterprise-class drives, desktop drives have a higher level of risk for potential data loss and failure in an always-on RAID configured NAS system. Specific issues that you may experience using desktop drives in a NAS or RAID environment include:

  • Compatibility: Desktop hard drives are not always tested for compatibility in NAS and can present problems during integration.
  • Reliability: Most desktop drives are not designed for the high operating temperatures or for 24x7 operating environments making them less reliable when used in a NAS system.
  • Error recovery controls: Desktop drives are not traditionally designed for RAID environments and have controls that prevent the RAID controller from assisting in the event of an error which can cause the hard drive to drop off the RAID after a period of time.  Rebuilding a RAID often requires several hours and can have a significant impact on downtime and productivity.
  • Noise and vibration: Typically designed for single drive applications, average desktop drives are not optimized for multi-drive systems which have higher noise and vibration levels. When these drives are added to a NAS, the additional vibration can reduce the reliability and life span of the drive.

Beyond the Desktop with NASware 2.0

Beyond the Desktop with NASware

WD Red drives include WD's exclusive NASware technology that addresses many of the challenges a traditional desktop hard drive has in a NAS system. WD works directly with our partners to test compatibility and reduce our customer's guess work as to which drive is right for their NAS system. Designed to deliver a better customer experience in small NAS systems, this innovative firmware finely balances the most important attributes of performance, power, and reliability in multiple drive environments. The unique algorithms in NASware optimize power and performance without compromising on the attributes that NAS-system owners value.

Intelligent error recovery

With built in intelligent error recovery controls, NASware also prevents hard drives from being dropped off the RAID due to extended error recovery. This feature provides more availability and less down time when rebuilding the RAID.

Command completion

To further improve reliability, NASware minimizes the data corruption or loss in the event of an unexpected power loss by completing the command in process before shutting down.

Save power and moneySave power and money

NASware further improves drive reliability and protects your data in the event of a power loss or disruption. Optimized power usage of WD Red drives results in significant power savings and lower hard drive operating temperatures within a small NAS environment, improving the overall reliability and performance of the drive and reduces the NAS cost of ownership.

Important features for system integrators

In addition to features that make WD Red™ drives perfect for populating or upgrading NAS systems, NASware brings features that system integrators need when building specialized NAS systems.

  • Streaming Support - NASware provides built-in compatibility with the ATA Streaming Feature Set, which is important for AV storage applications such as Windows Media Center.
  • SMART Command Transport (SCT) support - NASware allows monitoring and measuring of drive performance via the SMART command set. SMART can return data like thermal profiles, drive access statistics and more. NASware also delivers temperature accuracy within 1°C.
  • Power Management Support - Enables optimized power usage within the NAS system and protects your data in the event of a power loss or disruption.
  • Best In Class Performance Performance - Optimized seek to provide Best In Class Performance performance while reducing the power and acoustics.

What is NAS?


NAS, your DIY cloud

Network Attached Storage, commonly referred to as “NAS”, allows a set of users to easily share data across a common network, whether operating in a small home or large office setting. WD Red hard drives are designed specifically for home and small office networks equipped with a 1 to 8 bay NAS chassis, allowing you to create your own personal cloud without any monthly fees or storing your data in a mysterious location. NAS with WD Red drives allows you to store your media, files or system backups and access them securely over the Internet with any computer. Protect your data with wireless backup for all the PC and Mac computers on your home network.

An improved streaming experience
An improved streaming experience

A home NAS system with WD Red hard drives also allow you to watch your daughter's birthday party video or show off your vacation slideshow on your TV. The NAS system acts as a built-in media server to stream music, photos and videos to any DLNA-certified multimedia device such as a WD TV Live media player, Blu-ray Disc player, Xbox 360, PlayStation 3 or connected TV (DLNA 1.5 & UPnP certified). WD Red also comes with NASware 3.0, which further improves drive reliability and protects your data in the event of a power loss or disruption.

Network importance

An older network hardware configuration (which includes routers and Ethernet cables) can become a bottleneck to the WD Red next gen NAS experience. When building your NAS for your home or small business, purchase networking hardware that achieves the latest standards, such as streaming at 802.11ac data rates. This will increase the amount of bandwidth available on your network, allowing your WD Red hard drives to stream data from your NAS system even faster.

Automatic Backup
Automatic Backup

Protect your precious memories and wirelessly back up all your PC and Mac computers on your network to one reliable location with a NAS system equipped with WD Red. Every time you save something, it's instantly backed up over your network.* WD Red also includes iTunes server support so you can centralize your music and video collection and stream it to any PC or Mac computer with iTunes.

*Some system specific set up required.

The right choices for small to large NAS storage.

The right choices for small to large NAS storage

Tools:

Acronis True Image WD Edition SoftwareAcronis True Image WD Edition Software

Acronis True Image WD Edition Software helps you to completely clone your current system drive onto your new WD hard drive. Cloning makes an exact copy of your old system drive on your new WD hard drive, including the operating system, applications, data, preferences, and email settings. Everything will be present and operate exactly as it did on your old hard drive. Acronis True Image WD Edition now supports WD Advanced Format Drives and ensures that all partitions are optimally aligned.

ATIWD is based on the award winning Acronis True image Home 2009 backup, restore and disaster recovery program.

Key Features of Acronis True Image WD Edition Software:

  • Drive Cloning - Copies the source drive to a new WD drive, leaving all data on the source drive.
  • Drive Migration - Erase the source drive after the new WD drive has been imaged.
  • Drive Deployment - Enables users to prepare a WD drive so that selected folders or partitions can be excluded from the destination image.
  • Drive Image Backup - The long-term usage of the Drive Kit software will be to provide full drive image backups of a source drive at any time. Backup drive images will be stored as a file, which can be copied to any direct attached drive, network attached storage drive or optical media (CD/DVD).
  • Drive Image Recovery - The Recovery Manager enables users to restore a drive image from a direct or network attached drive. The Recovery Manager can also either erase just a portion of the drive to be used for the restored drive image, or all of the previous OS.
  • Create a Bootable Standalone Recovery Manager - With the Drive Kit software, users can create a bootable ISO image file, which contains the WD Drive Kit Standalone Recovery Manager software.
  • Recover a Drive Image from the Bootable Recovery Manager Software - The bootable Standalone Recovery Manager enables users to recover a drive image from either a CD/DVD drive, a direct attached drive, or a network attached drive.

Drive Views:

Bottom View
Bottom View
Top Angle View
Top Angle View

Right Angle View
Right Angle View
Cover View
Cover View

Documentation:

Download the WD Red Datasheet (PDF).

Download the WD Red Specsheet (PDF).
