WD VelociRaptor Workstation Hard Drives
Up to 1 TB of high-performance storage for power users


WD VelociRaptor Hard Drives

Western Digital Workstation Hard Drives
WD VelociRaptor Hard Drives - 3.5 Inch
WD VelociRaptor Hard Drive, 1 TB
Internal HD - 1 TB - 3.5 Inch - SATA 6 Gb/s - 10,000 RPM - 64MB Cache
#WD1000DHTZ
Get a Quote!
WD VelociRaptor Hard Drive, 250 GB
Internal HD - 250 GB - 3.5 Inch - SATA 6 Gb/s - 10,000 RPM - 64MB Cache
#WD2500HHTZ
Get a Quote!
WD VelociRaptor Hard Drives - 2.5 Inch
WD VelociRaptor Hard Drive, 1 TB
Internal HD - 1 TB - 2.5 Inch - SATA 6 Gb/s - 10,000 RPM - 64MB Cache
#WD1000CHTZ
Get a Quote!



WD VelociRaptorOverview:

WD VelociRaptor drives offer an unmatched combination of high performance and high reliability, perfect for workstations, high-end video and photo editing, low-end servers and performance enthusiast's systems. Comes with a 3.5-inch mounting frame for easy installation into today's high-performance systems and chassis.

WD Raptor has evolved! PC enthusiasts' favorite 10,000 RPM SATA drive is now faster than ever and available in a 300 GB capacity. Engineered for maximum speed, WD VelociRaptor combines a SATA 3 Gb/s interface and 16 MB cache, to deliver performance that's up to 35 percentage faster than its speedy older brother. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high-capacity SATA drive and are designed and manufactured to enterprise-class standards to provide enterprise reliability in high duty cycle environments.

Ultra fast

Ultra fast.
Designed around a 10,000 RPM spin speed, these SATA 6 Gb/s drives include a 64 MB cache and deliver the ultimate performance for photo and video editing.

5-Year Warranty

Rock-solid reliability.
With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive. In addition, these drives feature a 5-year limited warranty.

High capacity

High capacity.
State-of-the-art technology delivers a balance of high performance and high capacity perfect for data-intensive workloads that require large amounts of storage such as video editing, 3D rendering and scientific modeling.

WD VelociRaptorKiller speed
Built on the performance bloodlines of WD Raptor, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35% faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field.

Double the capacity
State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in up to 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive.

Ultra-cool operation.
Consumes less idle power and uses similar active power as the previous generation WD VelociRaptor, while offering higher capacity and performance.

NoTouch ramp load technology.
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

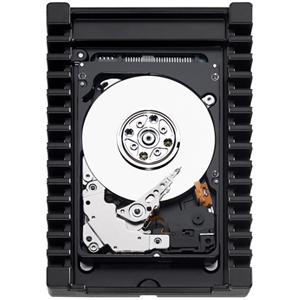

IcePack mounting frameIcePack mounting frame.
The 2.5-inch hard drive is enclosed in a backplane-ready 3.5-inch mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.

Environmentally conscious.
In addition to being RoHS compliant, this generation of WD VelociRaptor also provides a halogen-free design.

Rotary Acceleration Feed Forward (RAFF).
Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.

Pre-emptive Wear Leveling (PWL).
Ensures reliability for applications that perform a high incidence of read/write operations at the same physical location on the disk.

Advanced FormatAdvanced Format (AF).
Technology adopted by WD and other drive manufacturers as one of multiple ways to continue growing hard drive capacities. AF is a more efficient media format that enables increased areal densities.

Ideal for:
Power computing applications such as multimedia, video and photo editing, and maxed out gaming computers.

Applications

  • High-performance computing, 3D rendering, digital content creation and editing, scientific computing and image management.

Specifications:

Examples of the number of photos, songs, videos and any other files that can be stored on a hard drive are provided for illustrative purposes only. Your results will vary based on file size and format, settings, features, software and other factors.

Photo: Figures represent the average number of photos taken with a 6 megapixel camera in high-resolution JPEG mode with an average file size of 3.5 MB per photo. The actual number of images will vary by camera model and compression setting.

Hours: The DV format, regardless of its mode (miniDV, DVCAM, DVC-Pro) has a data rate of approximately 25mb/s (mega-bits per second). In storage terms, this translates to approximately 3.5MB/s (Megabytes per second) or 13GB/hr (Gigabytes per hour)

Song: Music capacity is based on 4 minutes per song. MP3 capacity is based on 128 Kbps bit rate and 11:1 audio compression ratio. Uncompressed CD quality is based on 1:1 audio compression ratio.


Dimensions

What It Holds

As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, megabit per second (Mb/s) = one million bits per second, and gigabit per second (Gb/s) = one billion bits per second.

Drive Size 1 TB 250 GB
Specifications:1
Model Number WD1000DHTZ WD2500HHTZ
Interface SATA 6 Gb/s SATA 6 Gb/s
Formatted Capacity 1 TB 250 GB
User sectors per drive 1,953,525,168 488,397,168
Advanced Format (AF) Yes
SATA latching connector Yes
Form factor 3.5-inch
RoHS Compliant2 Yes
Performance:
Data transfer rate (max)
Buffer to host
host to/from drive (sustained)

6 Gb/s
200 MB/s
Cache (MB) 64
Rotational Speed (RPM) 10,000
Average drive ready time (sec) 8
Reliability/Data Integrity:
Load/unload cycles3 600,000
Non-recoverable read errors per bits read <10 in 1016
Limited warranty (years)4 5
Power Management:
12VDC peak (A, ±10%) 1.8
Average power requirements (W) Random Read/Write: 5.1
Sequential Read/Write: 5.8
Idle: 4.2
Sleep: 1.1
Environmental Specifications:5
Operating Temperature 5 to 55 °C
Non-operating Temperature -40 to 70 °C
Shock (Gs):
Operating (2 ms, read/write) 30
Operating (2 ms, read) 65
Non-operating (2 ms) 300
Average acoustics (dBA):6
Idle mode 30
Performance seek mode 37
Physical Dimensions:
Height (in./mm, max) 1.028/26.1
Length (in./mm, max) 5.787/147
Width (in./mm, ± .01 in.) 4/101.6
Weight (lb./kg, ± 10%) 1.10/0.50 1.10/0.50

1 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 3 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATAIO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
2 WD hard drive products manufactured and sold worldwide after June 1, 2006, meet or exceed Restriction of Hazardous Substances (RoHS) compliance requirements as mandated by the RoHS Directive 2011/65/EU.
3 Controlled unload at ambient condition.
4 The term of the limited warranty may vary by region. Visit http://support.wdc.com/warranty for details.
5 No non-recoverable errors during operating tests or after non-operating tests.
6 Sound power level.

Advanced Format TechnologyAdvanced Format Hard Drive Download Utility:


About Western Digital Advanced Format Hard Drives

WD Advanced Format drives are specifically optimized for Mac and the latest Windows operating systems such as Windows Vista and Windows 7 with a clean install. Advanced Format Technology is being adopted by WD and other drive manufacturers to increase media format efficiency, thus enabling larger drive capacities.

Using your WD Advanced Format Hard Drive with a Windows Operating System may require you to run the WD Align Windows software utility after you install your operating system or partition and format the drive as a secondary drive. The WD Align software aligns existing partitions on the Advanced Format drive to ensure it provides full performance for certain configurations. (Please see table for configuration details)

If your operating system is either Windows 7 or Vista, WD recommends using the latest Intel driver version 9.6 or later for maximum performance in all situations. Please visit Intel for the latest driver downloads.

OS used to create patition Clean Install Cloning utilitiy
1 Partition or > 1 Partition
USB*
1 Partition
USB*
> 1 Partition
Windows XP Run WD Allgn Run WD Allgn Run WD Allgn Run WD Allgn
Windows Vista N/A Run WD Allgn N/A N/A
Windows 7 N/A Run WD Allgn N/A N/A
Mac OS N/A N/A N/A N/A

What does Advanced Formatting mean to me?

Advanced formatting optimizes hard drives to take advantage of the capabilities of newer operating systems. This capability enables hard disk drive manufacturers the ability to design larger capacity hard drives, now and into the future.

What are the benefits of Advanced Formatting?

Advanced Formatting enables hard drive companies to read and write more data into the same available space on the hard drive.

Can I install an Advanced Format hard drive in my system?

New drives from WD are optimized for operation with Windows 7, Windows Vista and Mac OS X Tiger, Leopard, Snow Leopard. If you are attempting a clean install of an Advanced Format hard drive into a system running one of the Operating Systems listed above the installation process follows standard procedure. For older operating systems such as Windows XP, and for users using cloning software, users must run the WD Align utility to achieve the full performance of the drive. (See table for configuration details)

Early 3.5-inch WD drives with Advanced Format supported jumper pins 7 – 8. Placing a jumper on these pins adjusted the drive's internal alignment for single partition XP installations. Support for this jumper setting is no longer needed on newer drives. For optimal performance on all XP installations WD recommends running the WD Align utility.

If you have a drive that supports jumper pins 7 – 8 and have a jumper in place on those pins, the following is additional information to assist you if you are re-installing an Operating System or re-partitioning the drive:

  • IMPORTANT: You must backup your drive before making any changes, including removal of the jumper.
  • Re-partition the drive: Turn off power to the drive and remove the jumper from pins 7 – 8. Power-on and re-partition the drive (NOTE: All previous data on the drive will be lost).
  • Preserve Current Partition: If you are installing an Operating System over the existing partition, keep the jumper on pins 7 – 8. The drive is already aligned to the existing partition so you do not need to remove the jumper.
  • If you change the setting of jumper 7 – 8, you will lose all previous data and the drive must be re-partitioned.

For a clean install of Windows XP using multiple partitions, DO NOT install the jumper; simply run the WD Align utility.

Can I install a WD Advanced Format Drive under non-Windows Operating Systems, such as MacOS and Linux?

WD Advanced Format Drives can be used under non-Windows Operating Systems.

Do I need a special driver to install a WD Advanced Format Drive on an Intel chipset?

If your operating system is either Windows 7 or Vista, we recommend the following for maximum performance in all situations:

  • For Intel chipset, use the latest Intel driver version 9.6 or later. Please visit Intel for the latest driver downloads at http://www.intel.com/support/chipsets/imsm/sb/CS-031502.htm
  • For AMD chipset, no driver update is required.
  • For Nvidia chipset, please visit http://support.microsoft.com/kb/982018 for additional information.

What is WD Align utility software?

The WD Align utility enables older operating systems to operate at full performance on Advanced Format hard drives.

How long will running the WD Align utility take?

It will vary based on your operating system and how much data is on the disk, but the WD Align utility should take about 20 minutes to complete on freshly installed drive images with no data files. We recommend disabling Power Management prior to starting the partitioning alignment process.

Does the WD Align utility have to be run again if a drive is reformatted?

No, users will only need to run WD Align one time after initially installing Windows XP. Once Windows XP has been aligned, it will stay aligned even if the drive is reformatted or many files are added or removed.

What models utilize Advanced Format technology?

Some models of the WD Green and WD Blue product families are built using Advanced Format technology. Over time more models and capacities will be added. WD drives with Advanced Format technology include special installation information on the drive label so be sure to read the label on your drive before installing it.

Does WD Align work with Western Digital USB and Firewire drives, such as My Book and My Passport drives?

If you do not change the partitions on a Western Digital USB or Firewire drive, the drive is already optimally aligned. However, all Western Digital USB and Firewire drives are specifically designed to work with WD Align. If you repartition a Western Digital USB or Firewire drive, WD Align should be run to optimally align the partition or partitions.

Can I install my Advanced Format Drive into a USB enclosure?

Yes, you may install your Advanced Format Drive into a USB enclosure.

Drive Views:

Bottom View
Bottom View
Top Angle View
Top Angle View

Right Angle View
Right Angle View
Cover View
Cover View

Showcase:

360° View

Documentation:

Download the WD VelociRaptor Datasheet (PDF).

Download the WD VelociRaptor Specsheet (PDF).
