PC SN520

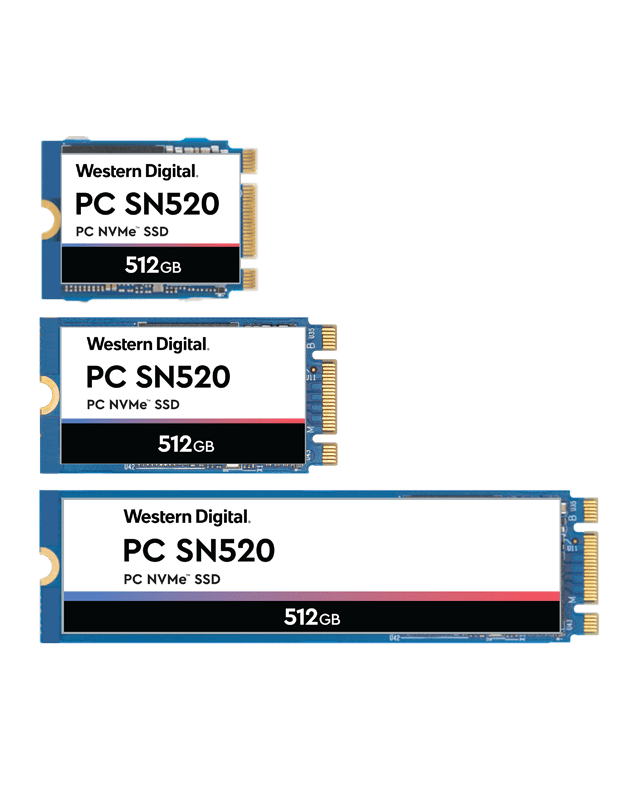

Multiple Form Factors Enable You to Build Ultra-Thin, Innovative Solutions

PC SN520

PC SN520
PC SN520
USA: FREE Ground ShippingPC SN520 M.2 2230 S3-B-M, 128GB
#SDAPTUW-128G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2230 S3-B-M, 256GB
#SDAPTUW-256G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2230 S3-B-M, 512GB
#SDAPTUW-512G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2242 S3-B-M, 128GB
#SDAPMUW-128G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2242 S3-B-M, 256GB
SDAPMUW-256G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2242 S3-B-M, 512GB
#SDAPMUW-512G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2280 S3-B-M, 128GB
#SDAPNUW-128G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2280 S3-B-M, 256GB
#SDAPNUW-256G
Contact us for pricing!
USA: FREE Ground ShippingPC SN520 M.2 2280 S3-B-M, 512GB
#SDAPNUW-512G
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Outstanding Performance with Greater Design Flexibility

The Western Digital PC SN520 NVMe™ SSD is designed for a multitude of applications that require both high performance and low power. The device is not only capable of more than three times the read speed over SATA SSDs, but further optimizes the low power consumption level to a mere 2.5mW. Equipped with a fully integrated solution including an in-house controller, 64-layer 3D NAND, firmware, and extensive testing, the Western Digital PC SN520 NVMe™ SSD provides longevity of supply in a robust and reliable design.



overview

Features:

Highlights

  • Read speeds up to 1,700 MB/s (512GB and 256GB models) and low power consumption leverages both the PCIe Gen3 x2 interface, as well as sophisticated NVMe power management
  • 128GB - 512GB capacities available in three small form factors: M.2 2230, M.2 2242, M.2 2280
  • Endurance of up to 300 TBW (512GB model)
  • 5-year limited warranty

Applications and Workload

  • Ultra-Thin Notebooks
  • Ultra-Thin Tablets
  • Embedded Applications
  • IoT Applications

Specifications:

  128GB 256GB 512GB
Sequential Read/Write Up to 1,500/800MB/s 1,700/1,300MB/s 1,700/1,400MB/s
Random Read/Write Up to 95/90K IOPS Up to 220/175K IOPS Up to 270/280K IOPS
Form Factor M.2 2280, 2242, 2230 M.2 2280, 2242, 2230 M.2 2280, 2242, 2230
Interface NVMe Gen3 X4 NVMe Gen3 X4 NVMe Gen3 X4
Endurance 100 TBW 200 TBW 300 TBW

Documentation:

Download the PC SN520 Datasheet (PDF).
