Overview:

Designed for Extreme Density and Flexibility

The Ultrastar Data102 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The extremely dense form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost. A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data102 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, and resellers/integrators that require dense, shared HDD or hybrid storage.

Building on 50+ Years of Storage Design Experience

Conventional dense disk shelves frequently suffer from performance degradation due to induced vibration from adjacent drives. Traditional platforms also have cooling challenges as the cooling air passes over successive rows of drives, losing effectiveness as it gets heated up along the airflow path. Developing storage devices and platforms side-by-side, we address these challenges through Silicon to Systems Design, a set of technologies developed based on a holistic view of devices, platform, and their interactions. The first two of these innovative technologies are IsoVibe™ and ArcticFlow™. IsoVibe reduces vibration-induced performance degradation, while ArcticFlow overcomes the cooling issues by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability, enabling our five-year limited warranty on the entire platform.

Designed for the Enterprise and the Cloud

This new platform addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers and resellers/integrators that require dense, shared HDD or hybrid storage. The Ultrastar Data102 provides the flexibility to specify the HDD and SSD combinations to balance capacity, performance and cost.

IsoVibe Vibration Isolation Technology

Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow Thermal Zone Cooling Technology

By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.



Features:

Highlights

  • Up to 102 Ultrastar DC HC520 HDDs (SAS or SATA)
  • Up to 1.2PB raw capacity in 4U
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost

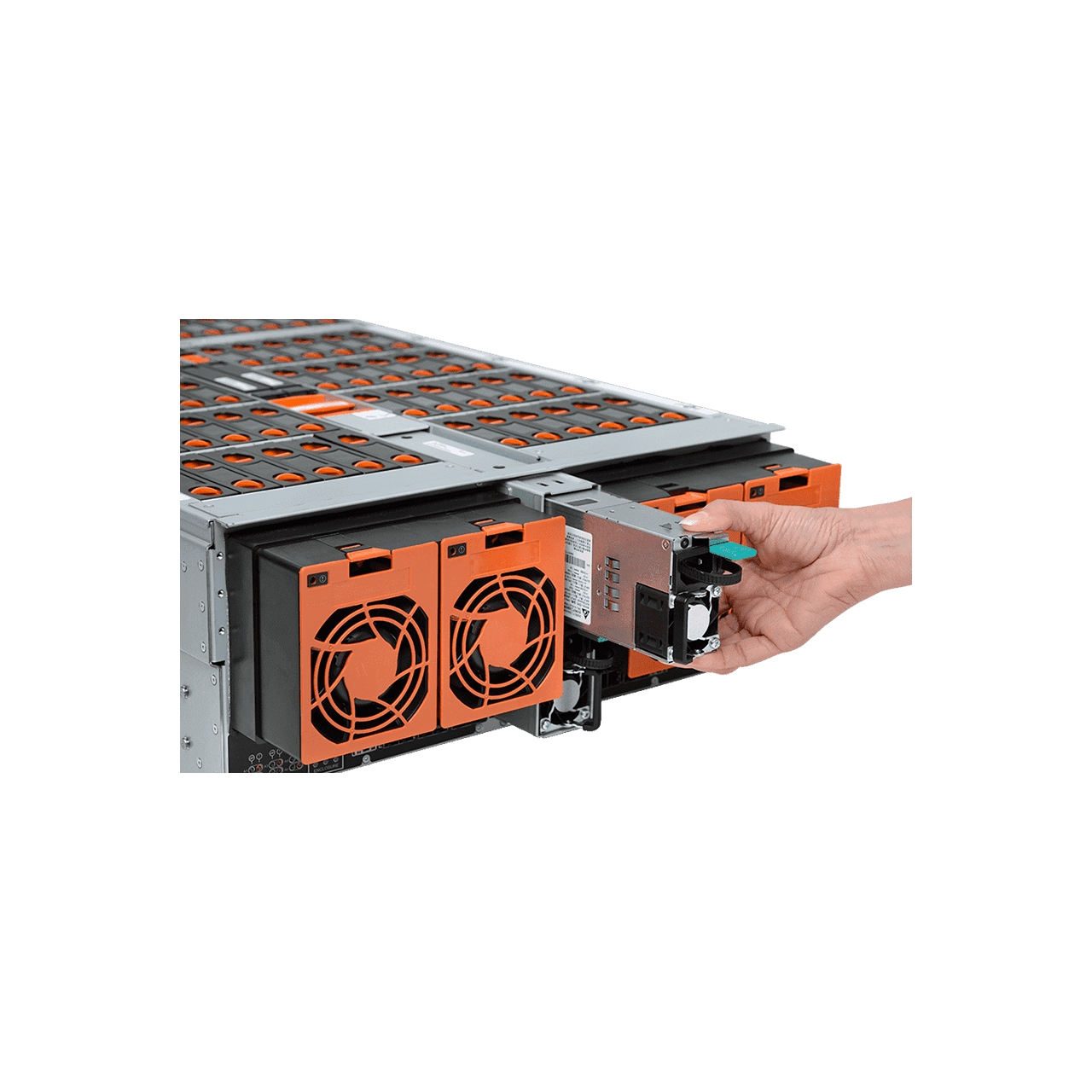

  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty

Applications and Workload

  • SDS Environments
  • Big Data
  • Private Cloud
  • Data Analytics
  • Cloud Infrastructure

Specifications:

  Ultrastar Data102 Hybrid Storage Platform
Max. Drives 102 x 3.5” drive bays
Up to 24 can be SAS or SATA SSD
Drive Interface 12 Gb/s SAS
6 Gb/s SATA
Available Drive Capacities HDD up to 12TB
SSD up to 6.4TB
Host Interface Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM
Management SCSI Enclosure Services
Redfish (out of band, via RJ45)
Physical Dimensions Height: 175mm (6.89”)
Width: 447mm (17.61”)
Depth: 1047mm (41.25”)
Depth in Rack: Max of 1,197mm (47.13”) w/ dual CMA—includes 24 SAS cables
Weight Product without drives: 31.8kg (70lbs)
Product with 102 HDDs: 118.8kg (262lbs)
Power Dual 1600W, 80+ Platinum
200-240V AC input, auto ranging, 50-60Hz
Cooling 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 I/O module fan
Dual PSUs with built-in fans
LED Indicators Front/Rear: Power, ID, Fault
Drive: Activity, Fault
Serviceability Cable-free hot-swappable IOM, power supply, fans, and drives
Environmental Operating Temperature: 5 to 40°C

Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C

Documentation:

Download the Ultrastar Data102 Datasheet (PDF).
