Ultrastar Serv24-A NVMe Server
High Performance Meets Portability

Ultrastar Serv24-A NVMe Server

Ultrastar Serv24-A NVMe Server
Ultrastar Serv24-A NVMe Server
USA: FREE Ground ShippingUltrastar Serv24-A NVMe Server
#Serv24-A
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Rugged, Portable Data Transport

Sometimes data needs to be physically transported safely and with multiple security measures when traditional methods of sending that data over a network may not be a viable alternative due to cost, security, or speed. This may include transporting movie files from location to post-production; seismic data from exploration rig to shore; sensitive battlefield data to base; or simply moving data center content to a cloud service provider. The Ultrastar Serv24-A Portable Storage Server provides up to 184TB of solid-state storage in a rugged, standard or tamper-evident case. With dual Intel® Xeon® CPUs and high-performance SSDs, data ingest and transfer is fast and efficient.

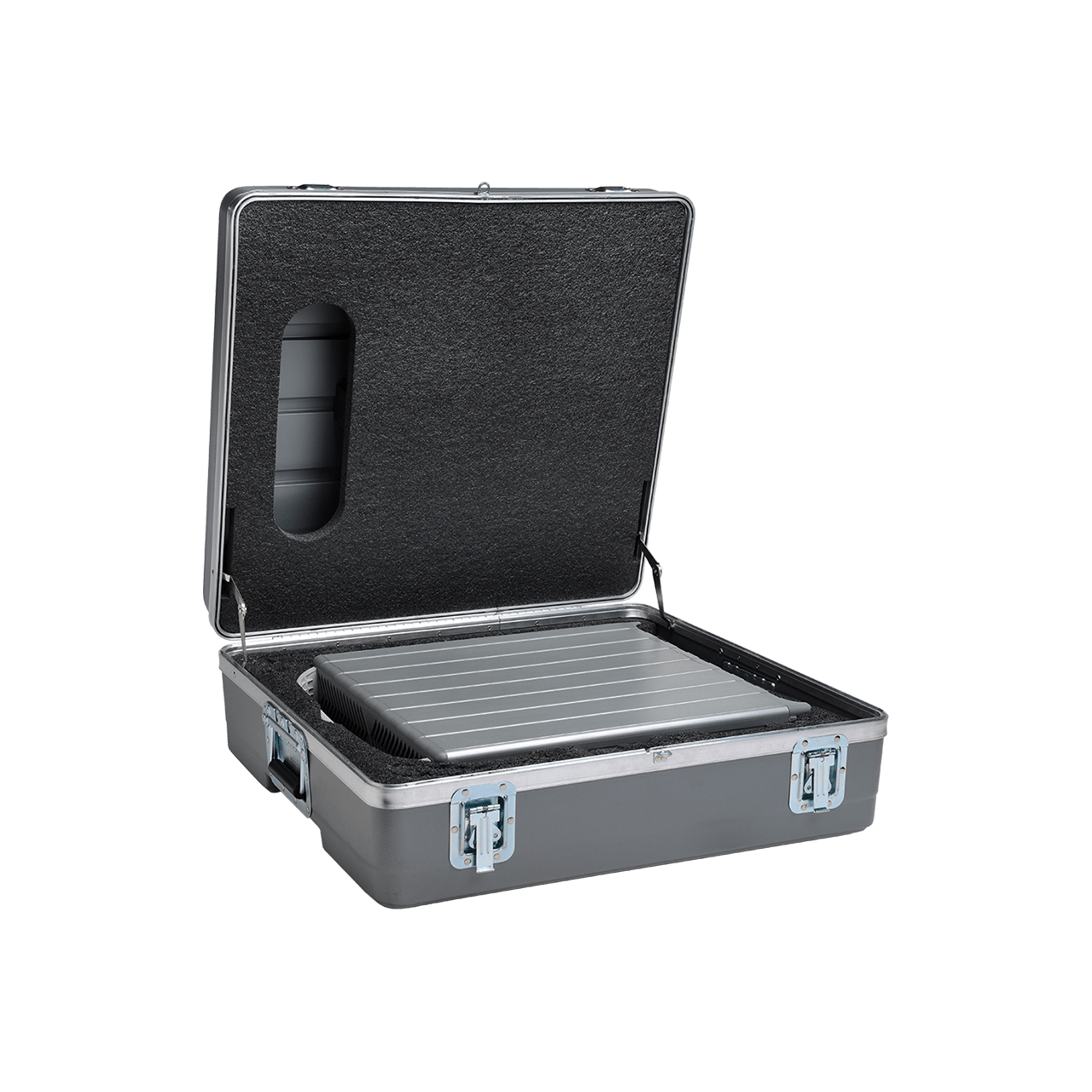

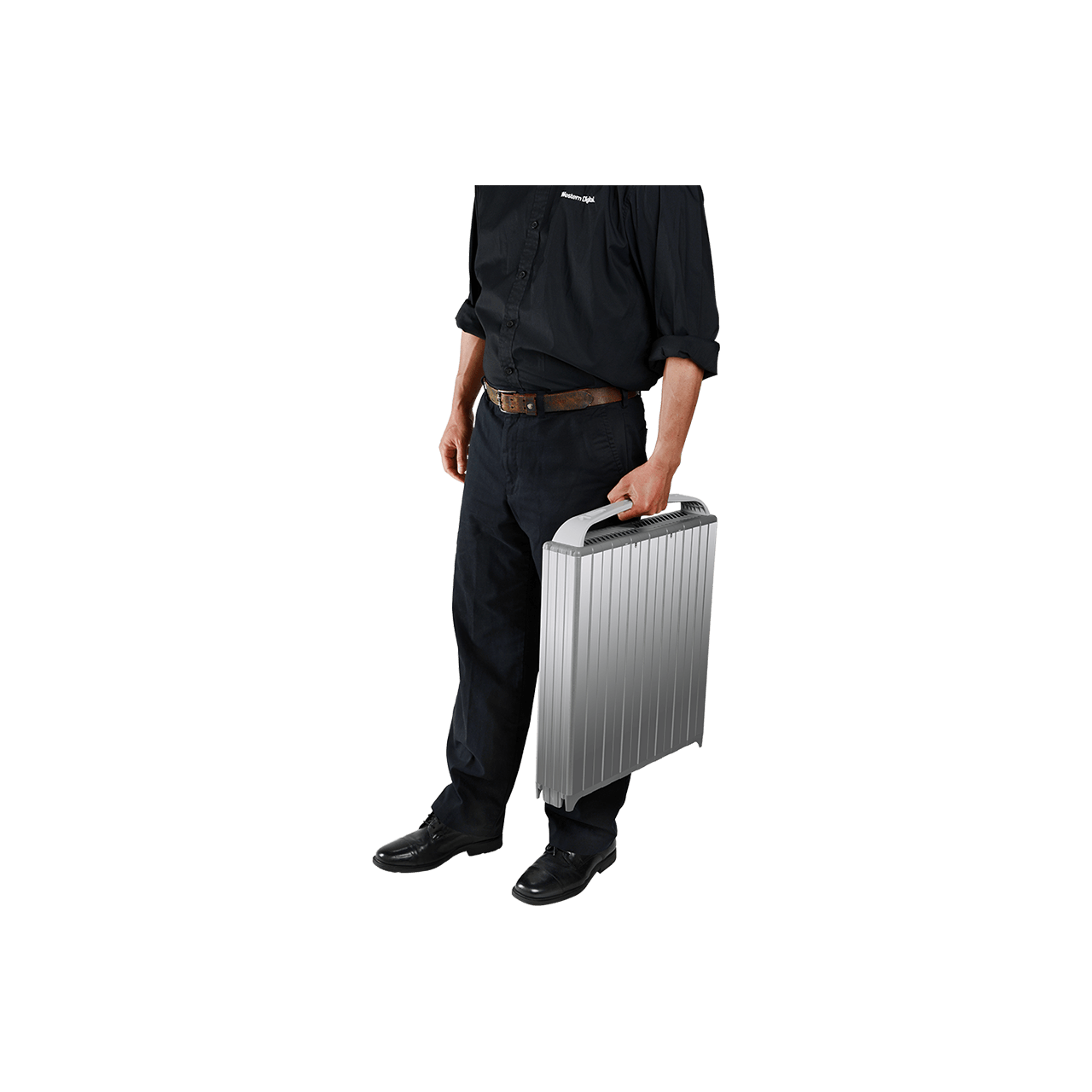

Multiple security options are available, including Trusted Platform Module (TPM), secure erase, and up to AES-256 SSD encryption. The integrated handle makes it easy to carry and the available wheeled transit case can provide for even more rugged transport. The Ultrastar Serv24-A Portable Storage Server is built to deliver high performance and enterprise-class reliability.



Features:

Highlights

  • Optional tamper-evident 2U aluminum enclosure
  • Dual-socket Intel Xeon scalable processor-based server
  • Up to 24 Ultrastar SATA SSDs
  • Up to 184TB1 raw capacity in 2U
  • Multiple security options: Secure Erase, Trusted Platform Module; AES-256 SSD encryption
  • Serviceability restricted by design

Applications and Workload

  • Media & Entertainment
  • Seismic Data
  • Government, Military
  • Public Cloud Providers
  • Security-Specialized System Integrators

Specifications:

  Ultrastar Serv24-A Hybrid Storage Platform
Max. Drives Up to 24 Ultrastar DC SS200 SSDs
Up to 7.68TB per SSD, 1 DW/D
Boot Drives 2 M.2 SATA 120GB SSDs
CPUs 2 Xeon Silver 4114, 2.2GHz, 10 C, 85W TDP
Memory 128GB DDR4 Installed (4x 32GB DIMMs)
Networking Onboard dual 10GBase-T
Onboard Intel X520-DA2 dual 10GbE SFP+ (25GbE and 40GbE also supported)
I/O 1 PCIe 3.0 x16
1 DB9 serial port
Management IPMI 2.0 system management
Dedicated DB9 serial management port
Physical Dimensions Height: 88.4mm (3.48”)
Width: 431.8mm (17”)
Depth: 431.8mm (17”)
Max. Weight Product with 24 SSDs: 17.7kg (39lbs)
Power 700W, Platinum
100-240V AC input, auto-ranging
Cooling 4 60mm fans, fixed
Environmental Operating Temperature: 10 to 35°C
Non-op Temperature: -30 to 60°C
Humidity: 8 to 90% relative humidity, non-condensing
Operating Altitude: 3,050m (10,000ft)

Documentation:

Download the Ultrastar Serv24-A NVMe Server Datasheet (PDF).
