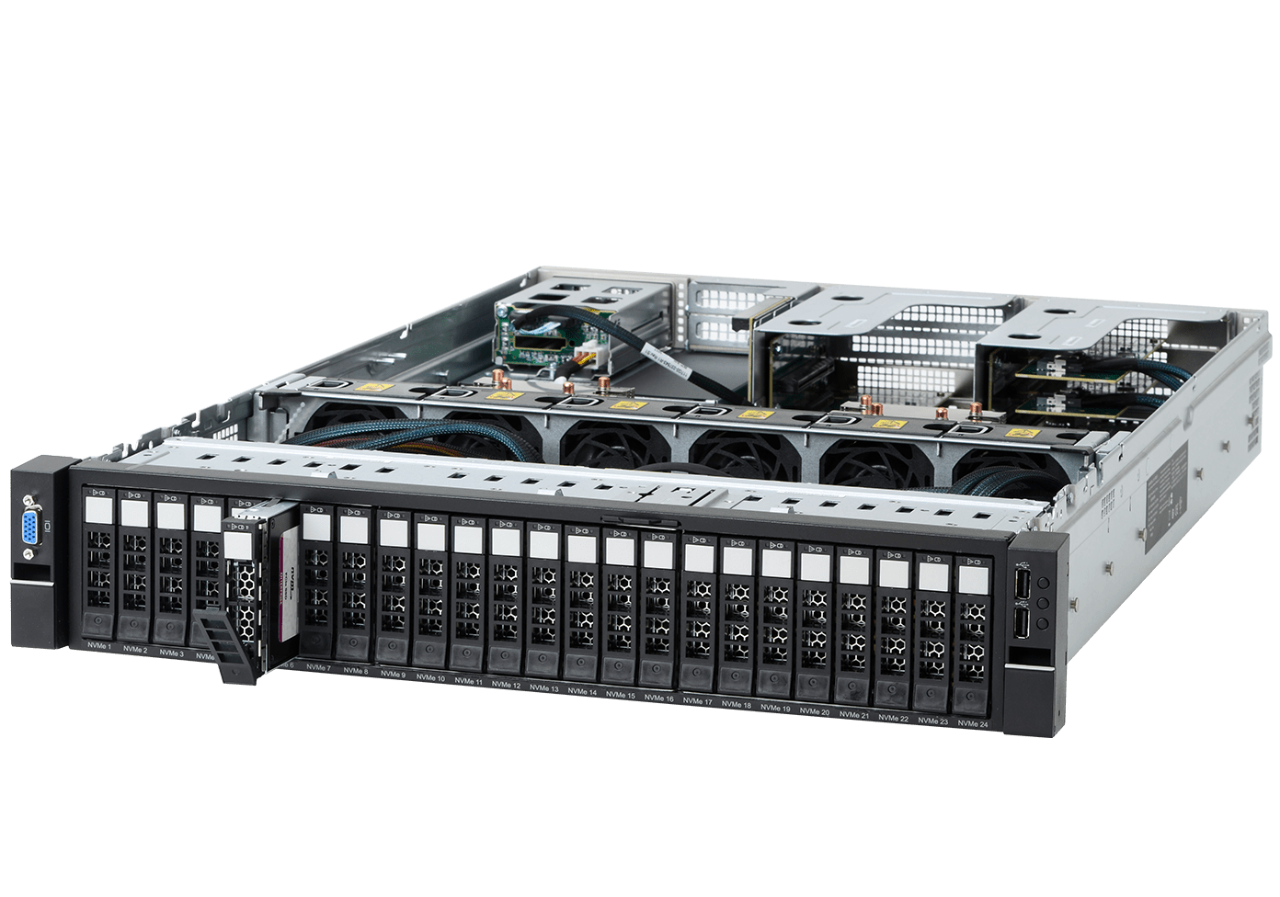

Ultrastar Serv24 NVMe Server
Performance-Optimized for Software-Defined Storage
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
High-Performance Storage and Compute
The Ultrastar Serv24 integrates the latest Intel® Xeon® CPUs and NVMe™ SSDs in the same unit to deliver a performance-optimized platform for Software-Defined Storage (SDS). Chipset, core count, and power can be customized to match varying data workload and performance requirements. Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver high performance for SDS environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Features:
Highlights
- High-performance Intel “Purley”-based server with a choice of CPUs
- Up to 24 NVMe SSDs with a range of capacity and endurance options
- Up to 184TB raw capacity in 2U
- 2 PCIe x16 slots available for add-in cards
- Enterprise-grade redundant and hot-swappable PSUs and fans
- 5-year limited warranty
Applications and Workload
- SDS Environments
- High-Performance Computing
- Private Cloud
- Database
- Data Analytics
- Virtualization (VSAN Node)
- Streaming Video
Specifications:
| Ultrastar Serv24 Hybrid Storage Platform | |
|---|---|
| Max. Drives | 24 x 2.5” NVMe SSDs |
| Available SSD Capacities | 3.20TB/1.60TB, 1.2/1.7 DW/D, Ultrastar DC SN620 3.84TB/1.92TB, 0.5/0.6 DW/D, Ultrastar DC SN620 6.4TB 3 DW/D, Ultrastar DC DC SN200 7.68TB 1 DW/D, Ultrastar DC SN200 |
| Available CPU Choices | Entry-Level: Xeon 5120, 2.2GHz, 14C, 105W Mid-Range: Xeon 6140, 2.3GHz, 18C, 140W High-Perf: Xeon 8160, 2.1GHz, 24C, 150W |
| Memory | 256GB DDR4 Installed (8x 32GB DIMMs) 24 DIMM Slots on motherboard |
| Expansion | 2 PCIe Gen3 x16 and 1 PCIe Gen3 x8 slot |
| Networking | 1 OCP 2.0 Mezz. Card, Connector A+C, Type 1 1 Dedicated 1GbE RJ45 for IPMI |
| I/O | 2 USB 3.0 1 VGA, DB15 1 Serial, DB9 |
| Management | IPMI 2.0 system management |
| Physical Dimensions | Height: 87mm (3.43”) Width: 448mm (17.64”) Depth: 760mm (29.92”) |
| Max. Weight | Product without SSDs: ~20.5 kg (45.2 lbs) Product with 24 SSDs: ~24.9 kg (54.9 lbs) |
| Power | 1+1 1200W, CRPS, 80+ Platinum 200-240V AC input 200-240V AC input |
| Cooling | 5+1 60mm fans, hot-swappable |
| Serviceability | Hot-swappable power supplies, fans, and SSD modules |
| Environmental | Operating Temperature: 5 to 35°C Non-op Temperature: -30 to 60°C Humidity: -12°C dew point, 5 to 85% relative humidity Operating Altitude: 40°C @ 3,000ft Sound Power: < 7.2Bels @ 23±2°C |
Documentation:
Download the Ultrastar Serv24 NVMe Server Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
