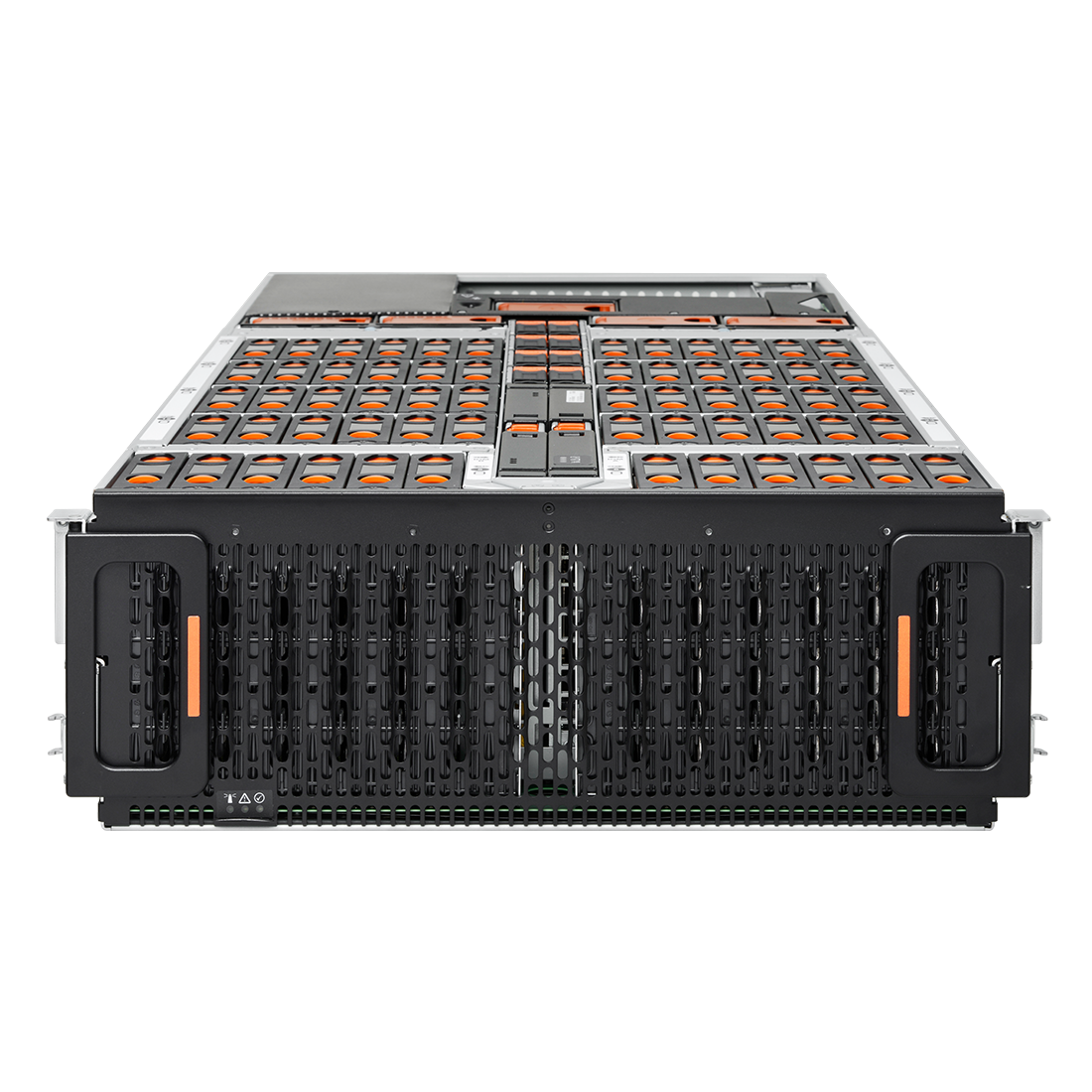

Ultrastar Serv60+8 NVMe Server
Performance-Optimized Hybrid Server for Software-Defined Storage
Ultrastar Serv60+8 NVMe ServerClick here to jump to more pricing!
Overview:
Designed for High Density and Flexibility
The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost. The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included.
Building on Western Digital’s 40-plus Years of HDD Design Experience
Developing storage devices and platforms side-by-side, enables the benefits of vertical innovation. The first of these patented innovative technologies are IsoVibe and ArcticFlow. IsoVibe reduces performance degradation in traditional platforms due to induced vibration from busy adjacent drives. ArcticFlow overcomes the cooling issues in a conventional dense chassis by introducing cool air into the middle of the platform. Both these technologies contribute to long-term reliability enabling a five-year limited warranty on the entire platform.
Designed for Big Data and Software-Defined Storage:
The new, high-capacity storage server addresses the demanding storage needs of large enterprise customers, OEMs, Cloud Service Providers and resellers/integrators that require dense, shared HDD or hybrid storage with compute included.
IsoVibe Patented Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow Patented Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
Features:
Highlights
- High-performance Intel Xeon® scalable processor-based server
- Choice of CPUs to match workloads
- Up to 60 (SAS or SATA) HDDs plus up to 8 (SAS or SATA) SSDs
- Hybrid support with up to 24 SSDs (SAS or SATA) in place of HDDs for a data acceleration tier
- Up to 780TB1 raw capacity in a 4U enclosure; up to 195TB per rack unit.
- Enterprise-grade redundant and hot-swappable PSUs and fans
- 5-year limited warranty
Applications and Workload
- SDS Environments
- High-Performance Computing
- Private Cloud
- Data Analytics
- Virtualization (vSAN Node)
- Streaming Video
Specifications:
| Ultrastar Serv60+8 Hybrid Storage Platform | |
|---|---|
| Max. Drives | 60 3.5” (SAS or SATA) HDD slots of which up to 24 may be used for 2.5” (SAS or SATA) SSDs Additionally, up to 8 (SAS or SATA) SSDs in center channel bays |
| Available CPU Choices | Up to two Intel Xeon Scalable processors, up to 24 cores per processor (165W TDP) |
| Memory | Up to 2TB 3DS LRDIMM or RDIMM (16x DDR4-2666Mhz DIMM Slots) |
| Expansion | 6 PCIe Gen3 Slots 1 PCIe Gen3 x8 slot is occupied by the storage controller for the 60 bays |
| Networking | Dual 10GbaseT Ethernet (RJ45) |
| I/O | 2 USB 2.0 2 USB 3.0 1 VGA, DB15 1 RJ45 BMC / Management |
| Management | Redfish (out of band via RJ45) IPMI 2.0 system management |
| Physical Dimensions | Height: 175mm (6.89”) Width: 447mm (17.61”) Depth: 1099mm (43.27”) Depth in Rack: Max of 1177mm (46.34”) w/CMA |
| Max. Weight | Product without drives: 40.82kg (90lbs) Product fully populated: 95.25kg (210lbs) |
| Power | 2000W AC, Redundant Power Supplies, (80+ Platinum) |
| Cooling | 6 high efficient fans, front-to-rear system cooling with zero-loss backflow prevention |
| LED Indicators | Front and Back Panel: Power, ID, Fault Fan and Drive: Fault IO Module: Power, ID, Fault |
| Serviceability | Hot-swappable power supplies, fans, IO module and drive modules |
| Environmental | Operating Temperature: 5 to 35°C Non-op Temperature: -40 to 70°C Humidity: 8% to 90% relative humidity Non-op humidity: 8% to 90% relative humidity |
| Drive Support | HDD: 6TB to 12TB SSD: 400GB to 7.68TB (SAS or SATA) M.2 boot drive: 120GB to 2TB (SATA/PCIe) |
Documentation:
Download the Ultrastar Serv60+8 NVMe Server Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
