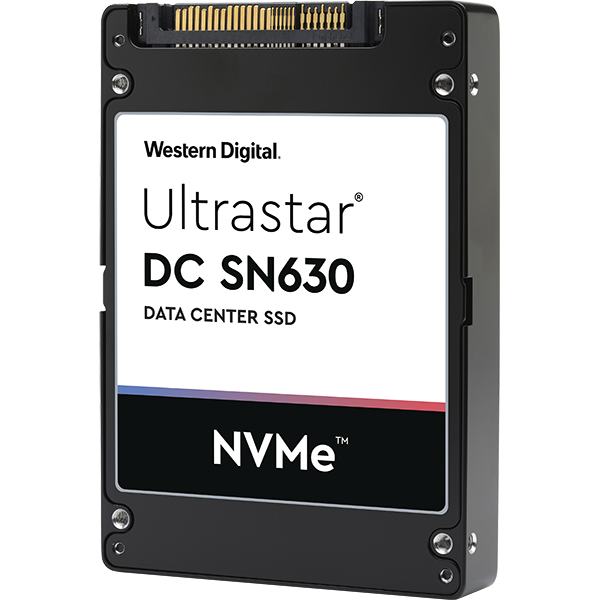

Ultrastar DC SN630
Low Latency and Maximum Throughput for High-Transaction Workloads

Ultrastar DC SN630

Ultrastar DC SN630
Ultrastar DC SN630
USA: FREE Ground ShippingUltrastar DC SN630 960GB, 0.8 DW/D
#WUS3BA196C7P3E3
Contact us for pricing!
USA: FREE Ground ShippingUltrastar DC SN630 1,920GB, 0.8 DW/D
#WUS3BA119C7P3E3
Contact us for pricing!
USA: FREE Ground ShippingUltrastar DC SN630 3,840GB, 0.8 DW/D
#WUS3BA138C7P3E3
Contact us for pricing!
USA: FREE Ground ShippingUltrastar DC SN630 7,680GB, 0.8 DW/D
#WUS3BA176C7P3E3
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Accelerate Access to Critical Data for Data-Intensive Workloads and Applications

Ultrastar NVMe series SSDs perform at the speed of today’s business needs. Enabling faster intelligence and access to critical data, these SSDs meet the growing digital demands of your business applications. Our top-end Ultrastar DC SN200 drive delivers extreme performance and ultra-low latency to the top tier of enterprise storage. It takes hyper-converged infrastructure (HCI) system throughput to new levels and

helps scale on-line transaction processing (OLTP). Our Essential NVMe drives, Ultrastar DC SN620 and DC SN630, offer low latency and higher bandwidth for a seamless transition away from SATA SSDs in mixed-use and read-intensive applications. This combination of high throughput and predictable low latency delivers high performance for deeper insights and faster results for today’s data intensive applications.



overview

Features:

Highlights

  • Up to 1.2M random read IOPS
  • Capacities from 800GB to 7.68TB
  • High-performance PCIe Gen 3 & NVMe compliant
  • Enterprise Data Durability Features
  • Options for read-intense and mixed-use workloads
  • Enterprise-class 2M hour MTBF4 reliability rating

Applications and Workload

  • Mission-Critical Database Applications
  • Highest Performance Tier Storage
  • Cloud and Hyperscale Computing
  • Analytical Processing (OLAP)
  • Boot and Edge
  • Hyper-Converged Infrastructure (HCI)
  • Virtualization

Specifications:

Configuration 960GB 1,920GB 3,840GB 7,680GB
Form Factor U.2 2.5-inch drive U.2 2.5-inch drive U.2 2.5-inch drive U.2 2.5-inch drive
Interface PCIe Gen 3.0 x4 (Compliant to NVMe™ 1.3) PCIe Gen 3.0 x4 (Compliant to NVMe™ 1.3) PCIe Gen 3.0 x4 (Compliant to NVMe™ 1.3) PCIe Gen 3.0 x4 (Compliant to NVMe™ 1.3)
Endurance (Drive writes per day, DW/D) 0.8 0.8 0.8 0.8
Flash Memory Technology WDC BiCS3 3D TLC NAND WDC BiCS3 3D TLC NAND WDC BiCS3 3D TLC NAND WDC BiCS3 3D TLC NAND
Performance (Specified at 10.75W Average)
Sequential Read, (max MiB/s, 128KiB BS, QD128) 2,770 2,750 2,580 2,620
Sequential Write, (max MiB/s, 128KiB BS, QD128) 970 1,270 1,230 1,290
Random Read (max IOPS, 4KiB BS, QD128) 277,220 348,590 329,020 363,750
Random Write (max IOPS, 4KiB BS, QD128) 46,410 51,460 55,820 54,490
Mixed Random Read/Write (max IOPS 70%R/30%W, 4KiB) 114,520 170,450 165,490 176,100

Documentation:

Download the Ultrastar DC SN630 Datasheet (PDF).
